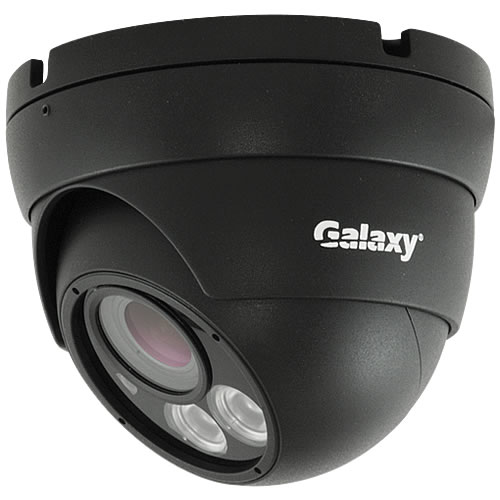

L'appareil-photo extérieur motorisé de dôme de V/F de la galaxie 1080P HD-TVI IR - 2.8 ~ 11mm
Data Sheet
Code du produit:
Code du produit:
TVI46DB-Z
Résumé:HD 1080P, 1/2.9 " 2,2 Mega Pixel Sony CMOS, DWDR, AWB, ICR, 2D/3DNR, sortie HD-TVI/CVBS, OSD, Sense up, 2pcs Super haute puissance IR LED jusqu'à 100ft (30m) IR distance, IP66, 2.8 ~ 11mm motorisé Varifocal Lentille, DC12V
- HD 1080P,1/2.9" 2.2 Mega Pixel SONY CMOS
- DWDR, AWB, ICR, 2D/ 3DNR
- HD-TVI/ CVBS output, OSD, Sense up, IR Smart
- 2pcs Super High Power IR LEDs up to 100ft(30m)IR distance, IP66
- 2.8~11mm Motorized Varifocal Lens, DC12V
Model | TVI46DW-Z |
IP Rating | IP66 |
Type | Removable IR Cut Filter |
Signal System | NTSC/ PAL |
Pick Up Device | 1/2.9" 2.2 Mega Pixels SONY CMOS |
Picture Elements | 1920(H) x 1080(V) |
Min Illumination | 0Lux (2 Pieces super high power IR LEDs) |
S/N Ratio | >/=52dB |
Lens | 2.8~11mm Motorized Varifocal Fixed iris IR Lens |
3D/2D | ON |
SENS-UP | ON |
IR SMART | ON |
White Balance | ATW |
Back Light Compensation | OFF |
DWDR | ON/OFF |
OSD | YES |
Video Out-put | HD-TVI/CVBS |
Power Supply | DC12V +/-10% |
Current Consumption | 550mA (Max) |
IR Effect Distance | 25~30 M (82~98 ft) (indoor) |
Dimension | Dia. 120 x 100 mm (Dia. 4.72" x 3.93") |
Weight | 790g |
Storage Temperature | -30 ~ +60 °C (-22 ~ +140 °F) |
Operating Temperature | -30 ~ +40 °C (-22 ~ +104 °F) |
