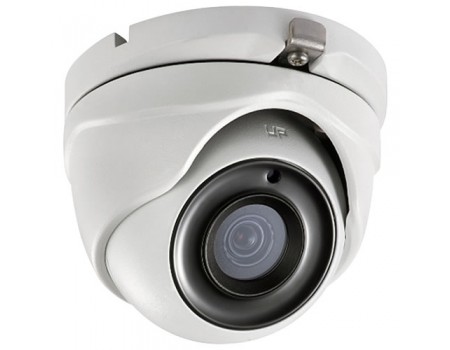

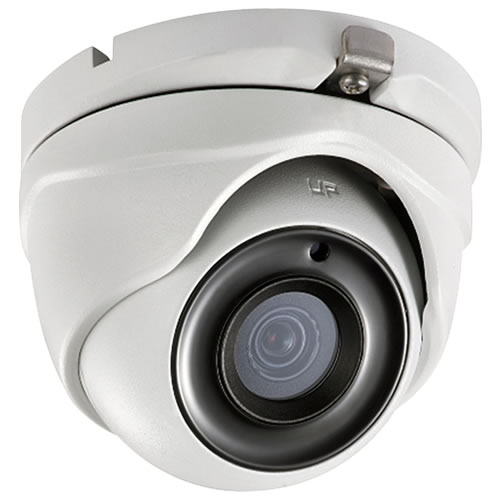

Caméra à tourelle IR Galaxy Matrix Prestige5MP HD-TVI - 2.8mm
Data Sheet
Code du produit:
Code du produit:
TVI-C715F-MIR
Résumé:5MP CMOS, 2592 x 1944 @ 20fps, vrai jour/nuit, menu OSD, DNR, Smart IR, ICR, IP67, Matrix IR jusqu'à 65ft (20m), Up le coaxial, objectif fixe de 2.8mm, DC 12V
- 5 megapixel high-performance CMOS
- HD analog output, up to 5 MP resolution
- 2.8 mm fixed focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20 m IR distance
- IP67
- Up the Coax
Camera | |
Image Sensor | 5 MP CMOS image sensor |
Effective Pixels | 2592 (H) x 1944 (V) |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/30 s to 1/50,000 s |
Lens | 2.8 mm fixed focal lens |
Horizontal Field of View | 86.5deg. (2.8 mm), 70.1deg. (3.6 mm), 46deg. (6 mm) |
Lens Mount | M12 |
Day & Night | ICR |
Angle Adjustment | Pan: 0deg. to 360deg.; Tilt: 0deg. to 75deg.; Rotate: 0deg. to 360deg. |
Synchronization | Internal synchronization |
Video Frame Rate | 2592 x 1944 @ 20fps |
HD Video Output | 1 turbo HD output |
Menu | |
AGC | Support |
D/N Mode | Auto/Color/BW (Black and White) |
White Balance | ATW/MWB |
BLC | Support |
Language | English/Chinese |
Functions | Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
General | |
Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Power Supply | 12 V DC+/-30% |
Power Consumption | Max. 5 W |
Protection Level | IP67 |
IR Range | 10 to 20 m |
Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
Dimension | 91 mm x 82.6 mm x 68.3 mm (3.58" x 3.25" x 2.69") |
Weight | Approx. 350 g (0.77 lb) |

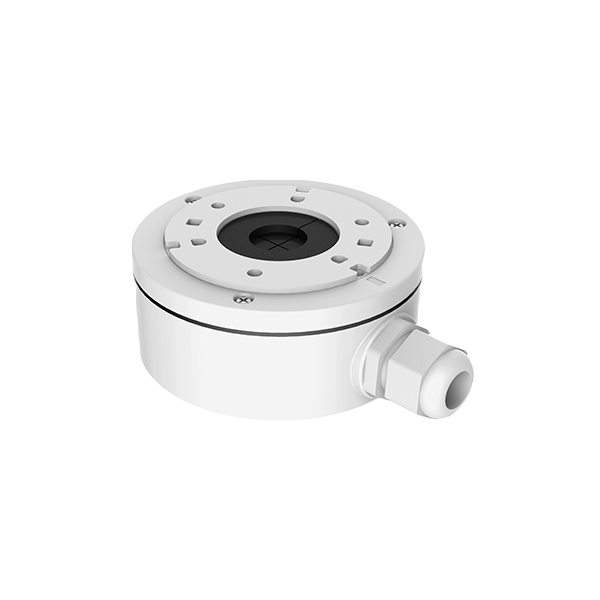

Junction Box
DS-1280ZJ-XS

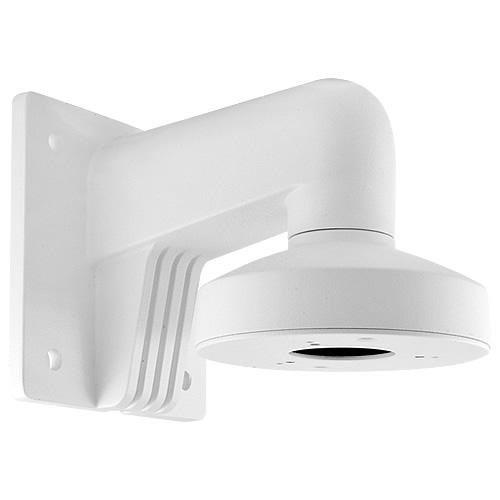

Wall Mount
DS-1272ZJ-110TRS
