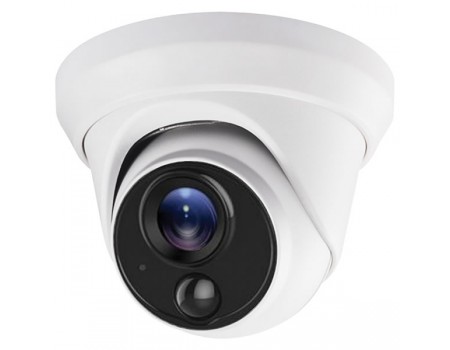

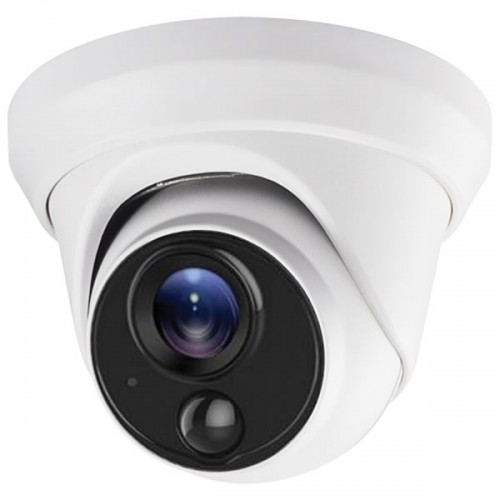

Caméra HD HDTVI Tourelle Haute Définition 5MP

2.8mm objectif fixe

2560x1944 @ 20fps

0,01 Lux, Smart IR

2 LED Matrix IR 2.0 jusqu'à 66 pieds

Contrôle UTC au menu OSD

DC 12V

IP67

Détection PIR, alarme visuelle

CAMERA
Image Sensor5MP CMOS
Signal SystemNTSC/PAL
Effective Pixels2560(H)*1944(V)
Min. Illumination0.01 Lux, 0 Lux with IR
Lens2.8mm; FoV: 85.5°
Shutter Speed1/30 (1/25) to 1/50,000 s
Day & NightICR
SynchronizationInternal
Video Frame Rate2560 x 1944@20fps
HD Video Output1 Analog Output
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
MENU
White LightAlarm/Off
AGCSupport
D/N ModeColor/ BW/ SMART
White BalanceATW/ MWB
BLCSupport
FunctionDNR, Mirror, SMART IR
GENERAL
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power SupplyDC 12V
Power ConsumptionMax. 4.5W
Weather Proof RatingsIP67
IR RangeUp to 66ft (20m)

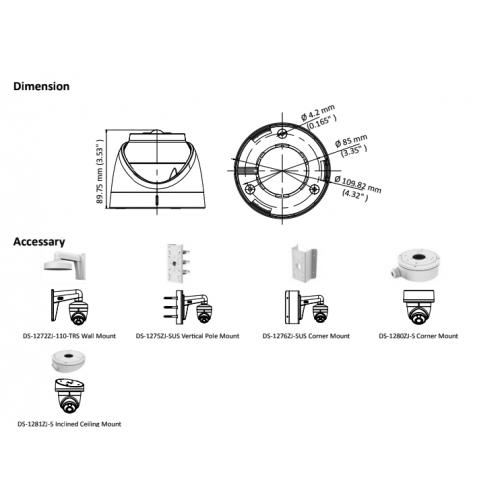

Dimensions Ø 4.32" × 3.53"(Ø 109.8 mm × 89.75 mm )
Weight0.68 lbs (310g)

Junction Box

DS-1230ZJ


Wall Mount

DS-1273ZJ-130TRL
