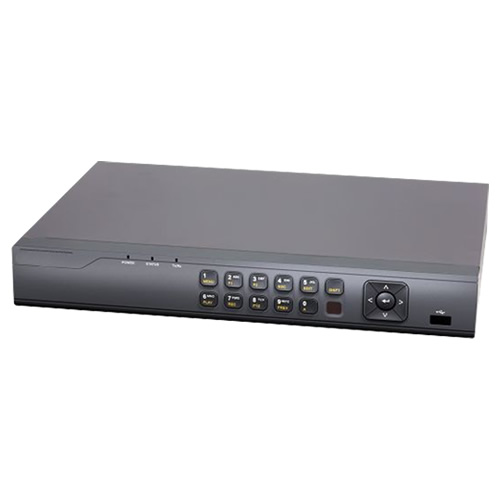

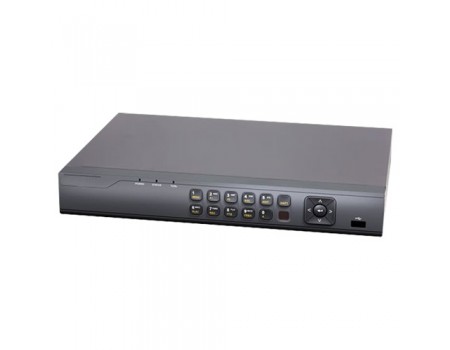

Galaxy Platinum 8CH 2MP H.265+ HD-TVI DVR
Sale
Data Sheet
Code du produit:
Code du produit:
TVI-DVR8508K-ETC
Résumé:8CH HDTVI/HDCVI/AHD/CVBS up to 4MP, 2CH IP up to 4MP, H.265+, up to 3MP@15fps, 1080p@30fps, Dual Stream, 1x HDMI, 1x VGA, CVBS output, Audio 1in/1out, 1x SATA up to 6TB, 2x USB2.0, RS-485, 1 RJ45 10/100M, Compact 1U
Video Input and Transmission
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 2-ch 4 MP IP cameras input
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras
H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Up to 3MP resolution for recording
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Video Output
Simultaneous HDMI/VGA output Separate CVBS output
Storage and Playback
1 SATA interface (up to 6 TB capacity per HDD) 8-ch synchronous playback
Smart search for efficient playback
Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras support 2-ch line crossing detection and intrusion detection
VQD (Video Quality Diagnostics)
Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management 1 RJ45 10M/100M Ethernet network interface
Output bandwidth limit configurable
|
Video/Audio Input |
Video compression |
H.265+/H.265/H.264+/H.264 |
|
Analog video input |
8-ch, BNC interface (1.0 Vp-p, 75 Ohm), supporting coaxitron connection |
|
|
HD TVI input |
3MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60, The 3MP signal input is only available for the first channel |
|
|
AHD input |
1080p25, 1080p30, 720p25, 720p30 |
|
|
HD TVI input |
1080p25, 1080p30, 720p25, 720p30 |
|
|
CVBS input |
PAL/NTSC |
|
|
IP video input |
1-ch, Up to 4 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras |
|
|
Audio compression |
G.711u |
|
|
Audio input |
1-ch, RCA (2.0 Vp-p, 1 K Ohm) |
|
|
Video/Audio output |
CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
HDMI/VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
Encoding resolution |
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
|
|
Frame rate |
Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
|
Sub-stream: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
||
|
Video bit rate |
32 Kbps to 6 Mbps |
|
|
Audio output |
1-ch, RCA (Linear, 1 K Ohm) |
|
|
Audio bit rate |
64 Kbps |
|
|
Dual stream |
Support |
|
|
Stream type |
Video, Video & Audio |
|
|
Synchronous playback |
8-ch |
|
|
Network management |
Remote connections |
128 |
|
Network protocols |
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
|
Hard disk |
SATA |
1 SATA interface |
|
Capacity |
Up to 6 TB capacity for each disk |
|
|
External interface |
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 K Ohm) (using the 1st audio input) |
|
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
|
USB interface |
2 × USB 2.0 |
|
|
Serial interface |
RS-485 (half-duplex) |
|
|
General |
Power supply |
12 VDC |
|
Consumption (without HDD) |
</= 6 W |
|
|
Working temperature |
-10 ºC to +55 ºC (14 ºF to 131 ºF) |
|
|
Working humidity |
10% to 90% |
|
|
Dimensions (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
|
|
Weight (without HDD) |
</= 1.78 kg (3.9 lb) |
