Data Sheet

Code du produit:

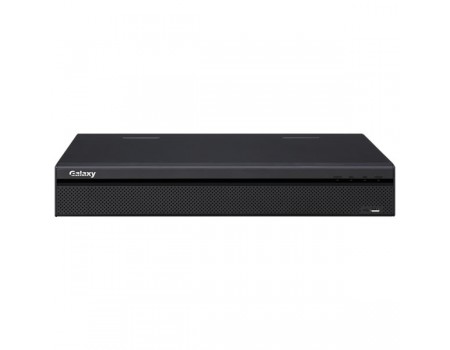

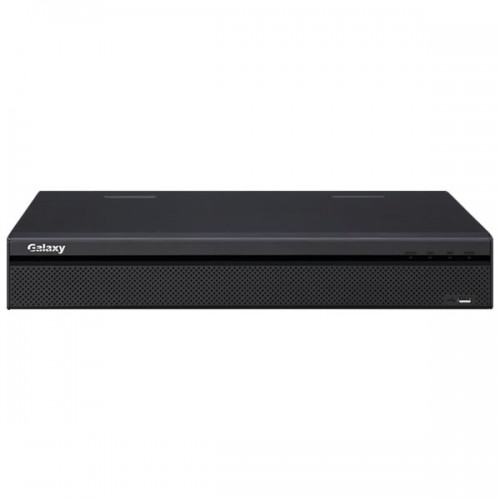

GX-HT-NVR8432

Résumé:

32CH 4K NVR, Support AI IPC, 2CH 4K@30fps, 8CH 1080P@30fps, 200Mbps, H.265+, 1x VGA, 1x 4K HDMI, 4x SATA up to 10TB/ea, 1x USB2.0, 1x USB3.0, Alarm, RS232, RS485, RJ45, P2P, Onvif, 1.5U


  • Smart H.265 + / H.265 / Smart H.264 + / H.264
  • Bande passante entrante max 200 Mbps
  • Résolution jusqu'à 8 MP pour l'aperçu et la lecture
  • Décodage jusqu'à 2ch @ 4K / 8ch @ 1080P
  • Sortie vidéo simultanée HDMI / VGA
  • Prise en charge IPC UPnP, ports 16PoE


System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Aduio and Video
IP Camera Input 32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 2ch@4K 30fps, 8ch@1080P 30fps
Multi-screen Display 1/4/8/9/16/25/36
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression Smart H.265+/H.265/Smart H.264+/H.264
Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 200Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel
Alarm output 4 Channel
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, MD and Exact Search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Network
Interface 1 RJ-45 Port (10/100/1000Mbps)
PoE -
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 4 SATA III Ports, Up to 10 TB capacity for each HDD
HDD Mode Single
Auxiliary Interface
USB 2 ports(1 USB2.0, 1 USB3.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption NVR: < 13.7W(without HDD)
PoE: Max 25.5w for single port, 150w in total
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions

1.5U, 440mm×411.1mm×76mm, (17.3" x 16.2" x 3.0")

Net Weight 4.7kg (10.4lb) (without HDD)
Gross Weight 7.5kg(16.5 lb)(without HDD)
