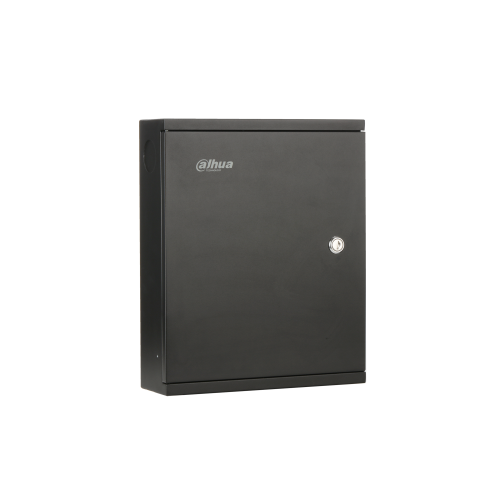

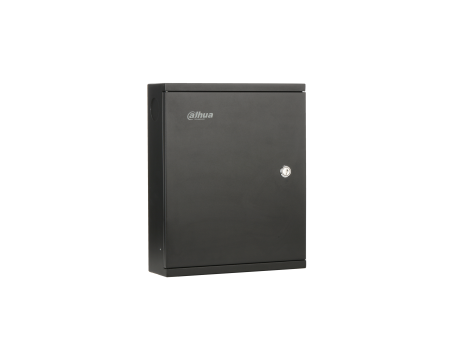

Galaxy 4-Door Multi-function Access Controller
New
Data Sheet
Code du produit:
Code du produit:
GX-ASC2204C-S
Résumé:Galaxy 4-Door Multi-function Access Controller / Supports TCP/IP, RS485, and Wiegand Protocols Stores 100,000 User and 500,000 Card-swipe Records Issues Alarms for Tampering, Intrusion, Timeout, Duress, Invalid Card, and Incorrect Password
> TCP/IP communication.
> Two communication protocols: RS-485 and Wiegand.
> Supports storing 100,000 user and 500,000 card-swiping records.
> Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock.
> Supports reader tamper alarm, intrusion alarm, unlocking timeout alarm, duress alarm, invalid card exceeding threshold alarm, and incorrect password alarm.
> Supports built-in RTC, manual time fixing, and automatic time fixing.
> Data can be saved permanently in case of power failure; supports online upgrade.
> Power supply through storage battery.
> Supports watchdog mechanism to ensure the operation stability
|
Unlock Mode |
Card swiping; Remote; Password; Fingerprint |
|
Period List |
128 |
|
Holiday Period |
128 |
|
Network Update |
Yes |
|
First-Card Unlock |
Yes |
|
Remote Verification |
Yes |
|
Blocklist/Allowlist |
Yes |
|
Peripheral Card Reader |
4-Channel RS-485 card reader |
|
Multi-door Interlock |
Yes |
|
Group Combination |
Card swiping; password; fingerprint |
|
Real-Time Surveillance |
Yes |
|
Multiple Authentication |
Yes |
|
User |
|
|
User (Card) Type |
General user; VIP user; patrol user; guest user; blocklist user; other user |
|
Capacity |
|
|
User |
100,000 |
|
Fingerprint |
3,000 |
|
Card |
100,000 |
|
Record Capacity |
500,000 |
|
Port |
|
|
RS-485 Port |
5 × RS-485 ports |
|
Wiegand |
4 × Wiegand ports |
|
Network |
1 × 10/100 Mbps Ethernet port |
|
Alarm Input |
6 (digital quantity) |
|
Alarm Output |
4 (relay) |
|
Alarm Linkage |
Yes |
|
Exit Button |
4 |
|
Door Status Detection |
4 |
|
Lock Control |
4 channels, NO by default |
|
Alarm |
|
|
Anti-Passback |
Yes |
|
Tamper |
Yes |
|
Duress |
Yes |
|
Door Unlock Timeout |
Yes |
|
Intrusion |
Yes |
|
Illegal Card Exceeding Threshold |
Yes |
|
Duress Fingerprint |
Yes |
|
General |
|
|
Power Supply |
100-240 V AC |
|
IP Rating |
IP20; Ik04 |
|
Power Consumption |
</= 0.8 W (standby), </= 39.6 W (working) |
|
Product Dimensions |
337 mm × 272 mm × 90 mm (13.27”× 10.71”× 3.54") (H × W × D) |
|
Packaging Dimensions |
472 mm × 352 mm × 163 mm (18.58" × 13.86" × 6.42") (H × W × D) (one product in an inner carton) |
|
Operating Temperature |
–30°C to +60°C (-22 °F to +140 °F) |
|
Operating Humidity |
5%–95% RH (non-condensing) |
|
Operating Environment |
Indoor |
|
Gross Weight |
3.5 kg (7.72 lb) |
|
Installation |
Surface mount |
|
Certification |
CE; FCC; UL |
