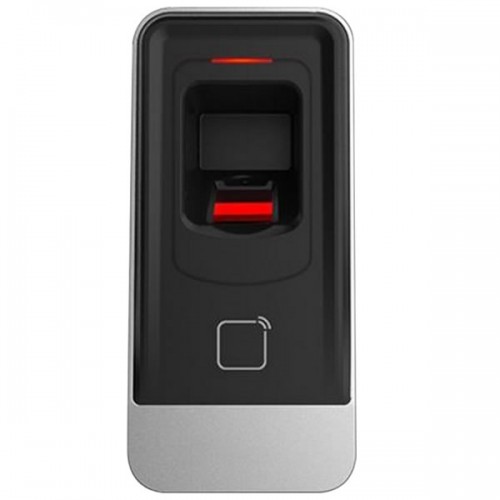

Fingerprint Card Reader
Data Sheet
Code du produit:
Code du produit:
GX-K1201MF
Résumé:Galaxy’s GX-K1201MF Fingerprint Card Reader is powered by a 32-bit high-speed processor. It communicates with the access controller via the RS-485 protocol. A built tamper-resistant module helps to protect the card reader from malicious damage. The IP65 protection level makes the GX-K1201MF suited for outdoor installation.
| System Parameters | ||
|---|---|---|
| FRR (False Rejection Rate): | ?0.01% | |
| Fingerprint Capacity: | 5,000 | |
| Card Reading Mode: | Build-in EM or Mifare Reading Module | |
| Comparison Mode: | 1:1/1:N | |
| FAR (False Accept Rate): | ?0.001% | |
| Card Reading Distance: | EM Card: ?100 mm (?3.94") Mifare Card:?50 mm (?1.97") | |
| Fingerprint Module: | Optical, Red Backlight | |
| Comparison Time: | 1:1?1s; 1:3000?1.5s | |
| Processor: | 32 Bit High-performance Processor | |
| Device Interfaces | ||
|---|---|---|
| Transmission Rate: | 19200bps-N-8-1 | |
| Communication Mode: | RS-485 | |
| General | ||
|---|---|---|
| Alarm: | Tamper Alarm × 1 | |
| Mounting Method: | Surface Mounting | |
| Power Supply: | 12VDC | |
| Prompt: | Buzzer | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 65 | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
| Dimensions (L×W×H): | 62mm × 132mm × 44mm (2.44" × 5.20" × 1.73") | |
