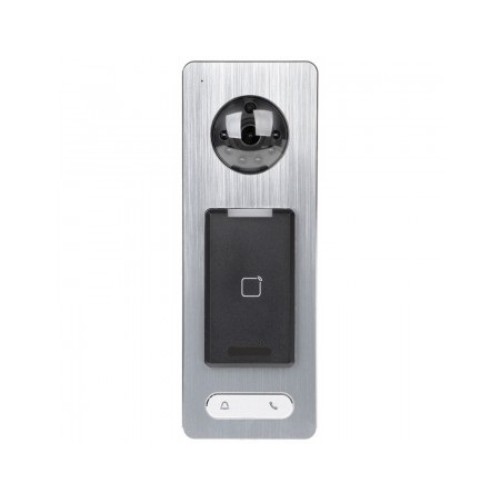

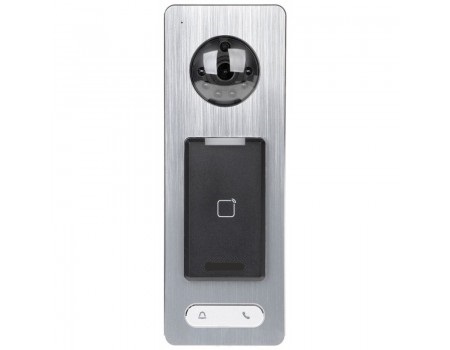

• Video access control card terminal
  • 2 Mega pixels camera
  • 50,000 card and 200,000 event storage
  • Built-in card reader for Mifare1 card
  • Wiegand interface and RS-485 interface for accessing controller
  • EHome for public network communication
  • Face detection and picture capture function
  • Video intercom function
  • IP65

Model

GX-K1T500S

Processor

32 Bit High-performance Processor

Camera

2MP/1080P, IR Light



Audio

Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker (1W)

Card Capability

50,000

Record Capability

200,000

Card Reading Mode

Mifare Card

Induction Distance

>/= 2cm



Communication Mode

Terminal Mode: TCP/IP and RS-485

Card Reader Mode: Wiegand (26/34) and RS-485



Input Interface

Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1

Output Interface

Lock Relay × 1, Alarm Output (Doorbell) × 1

Video Storage

Record and Save Video through NVR or Micro SD Card

Micro SD Card

Max. 128G

Protection Level

IP65

Power Supply

12 VDC/1 A

Working Current

Max. 600 mA

Working Temperature

-40°C to 70°C (-40°F to 158°F)

Working Humidity

10% to 90% (No Condensing)

Mounting

Wall Mounting

Dimension

218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
