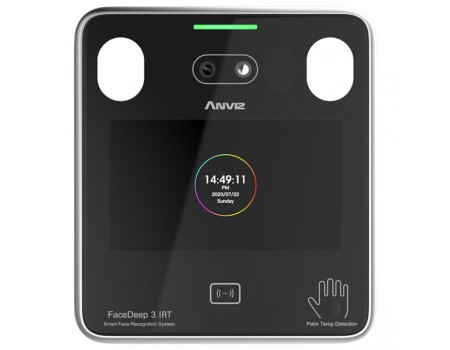

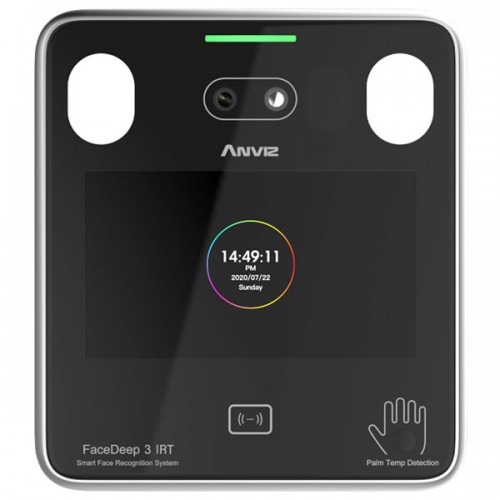

Smart Face Recognition Terminal with Body Temperature Detection
Data Sheet
Code du produit:
Code du produit:
GX-FACEDEEP3-IRT
Résumé:Dual Core 1.0Ghz High Speed Processor, 0.6 Tops Enhanced AI computing power . Latest Bionano Face Algorithm, Full HD wide angles camera, up tp 6000 dynamic faces database, upload template with photos or live collection. IR live face detection. Standard Mask deteection Function. 5"TFT-LCD Screen. Door Sensor and Exit button Scheduled Bell, Tamper Alarm Inbuilt Webserver Standard RFID EM Card Module, TCP/IP, USB Flash, RS232, Wiegand output, Wi-Fi, Mask Detection
FaceDeep 3 series are the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO®
deep learning algorithm. It supports up to 10,000 dynamic face database and rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and
customizes alerts and a variety of reporting for no-mask wearing.
| Series | GX-FACEDEEP3 | GX-FACEDEEP3-IRT | |||||
Model |
FaceDeep 3 |
FaceDeep 3 Pro |
FaceDeep 3 4G |
FaceDeep 3 IRT |
FaceDeep 3 Pro IRT |
FaceDeep 3 4G IRT |
|
| General | |||||||
| Identification Mode | Face, Card, ID+Password | ||||||
| Face Recognition Distance | 0.5 ~ 1.5m (19.69 ~ 59.06") | ||||||
| Face Recognition Speed | <0.3 S | ||||||
| RFID Technology | 125KHz EM | 13.56 MHz Mifare | 13.56 MHz Mifare | 125KHz EM | 13.56 MHz Mifare | 13.56 MHz Mifare | |
| IRT(Palm Temperature Detection) | |||||||
| Detection Distance | - | 10~20mm( 0.39~0.79") | |||||
| Temperature Range | - | 23°C~46°C ( 73°F~114°F ) | |||||
| Temperature Accuracy* | - | +/-0.3°C( 0.54°F ) | |||||
| Capacity | |||||||
| Max Users | 6,000 | 6,000 (Standard), 10,000 (Customized) | 6,000 (Standard), 10,000 (Customized) | 6,000 | 6,000 (Standard), 10,000 (Customized) | 6,000 (Standard), 10,000 (Customized) | |
| Max Cards | 6,000 | 6,000 (Standard), 10,000 (Customized) | 6,000 (Standard), 10,000 (Customized) | 6,000 | 6,000 (Standard), 10,000 (Customized) | 6,000 (Standard), 10,000 (Customized) | |
| Max Logs | 100,000 | ||||||
| Function | |||||||
| Time Attendance Mode | 8 | ||||||
| Group, Time Zone | 16 Access Groups, 32 Time Zone | ||||||
| WebServer | Yes | ||||||
| Record Auto Inquiry | Yes | ||||||
| Voice Prompt | Yes | ||||||
| Clock Bell | Yes | ||||||
| Multiple Language | Yes | ||||||
| Hardware | |||||||
| CPU | Dual 1.0 GHz | ||||||
| Camera | Dual Camera ( VIS & NIR ) | ||||||
| Scanning Area | Horrizontal:+/-20°?Vertical:+/-20° | ||||||
| Display | 5" TFT Touch Screen Resolution 720*1280 | ||||||
| Smart LED | Support | ||||||
| Dimensions(W x H x D) | 14.6x16.5x3.4 cm (5.75x6.50x1.34”) | ||||||
| Working Temperature | -5°C~6°C 23°F~160°F | ||||||
| Humidity | 0% to 95% | ||||||
| Power Input | DC 12V 2A | ||||||
| Interface | |||||||
| TCP/IP | Yes | ||||||
| RS485 | Yes | ||||||
| RS485 | Yes | ||||||
| Wi-Fi | Yes | - | - | Yes | - | - | |
| Wi-Fi + Bluetooth | - | Yes | - | - | Yes | - | |
| 4G | - | - | Yes | - | - | Yes | |
| Relay | 1 Relay Out | ||||||
| Tamper Alarm | Yes | ||||||
| Wiegand | 1 In / 1 Out | ||||||
| Door Contact | Yes | ||||||
| Software Compatibility | |||||||
| CrossChex Standard | Yes | ||||||
| CrossChex Cloud | Yes | ||||||
