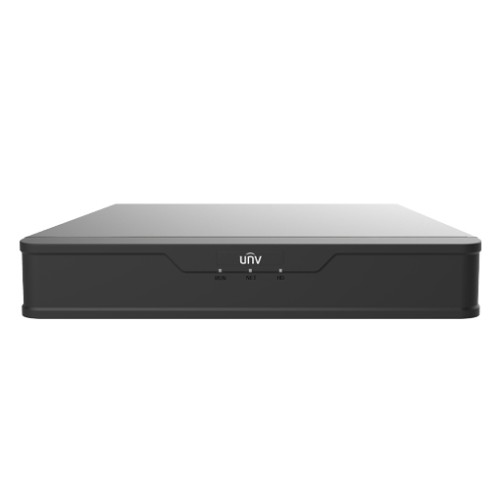

UNV Network Video Recorder
Code du produit:
NVR501-04B-P4
Résumé:4-ch, 1 SATA interface, 1U,H.265&4K, 4 PoE ports (IEEE802.3at), 4-ch, 1 SATA HDD,1-HDMI (4K)/1-VGA output, 1 USB 2.0,1 USB 3.0, JBOD, -10℃ to 55℃ (14°F to 131°F), 1 RJ45 10M/100M, built in 4 PoE(IEEE802.3at) switch, 1U, wall mountable.
Support Ultra 265/H.265 video formats
4/8-channel input
Plug & Play with 4/8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
1 SATA HDDs, up to 8TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Model | NVR501-04B-P4 | NVR501-08B-P8 |
Video/Audio Input | ||
IP Video Input | 4-ch | 8-ch |
Audio Input | 1-ch, RCA | |
Network | ||
Incoming Bandwidth | 80Mbps | |
Outgoing Bandwidth | 64Mbps | |
Remote Users | 128 | |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | |
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |
Video/Audio Output | ||
HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 | |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Two-way Audio | 1-ch, RCA(Using the audio input and output) | |
Audio Compression | G.711A, G.711U | |
Synchronous Playback | 4-ch | 8-ch |
Liveview display | 1/4 | 1/4/6/8/9 |
Corridor Mode Screen | 3/4 | 3/4/5/7/9 |
Snapshot | ||
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |
Decoding | ||
Decoding format | Ultra 265/H.265 | |
Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30 | |
Hard Disk | ||
SATA | 1 SATA interfaces | |
Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | |
Smart | ||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection) | |
VCA Search | Behavior Search, People Counting Report | |
People counting | People Flow Counting, Crowd Density Monitoring | |
Smart Intrusion Prevention (SIP), SMD by Camera | Total 4-ch | |
General Alarm | ||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
External Interface | ||
Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
RS232 | NA | |
RS485 | NA | |
Alarm In | NA | |
Alarm Out | NA | |
PoE | ||
Interface | 4 RJ-45 10M/100M self-adaptive Ethernet Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 50W in total | Max 30W for single port Max 75W in total |
Supported Standard | IEEE 802.3af/at | |
General | ||
Power Supply | 48V DC/1.35A Power Consumption: ? 10W (without HDD) | 52V DC/1.8A Power Consumption: ? 10W (without HDD) |
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing) | |
Dimensions (W×D×H) | 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8") | |
Weight (without HDD) | </= 0.98Kg (2.16lb) | |
Certification | ||
Certification | CE, FCC, UL, RoHS, WEEE | |
CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |
FCC | Part15 Subpart B, ANSI C63.4 |
