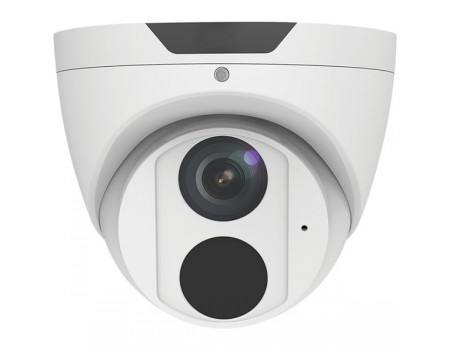

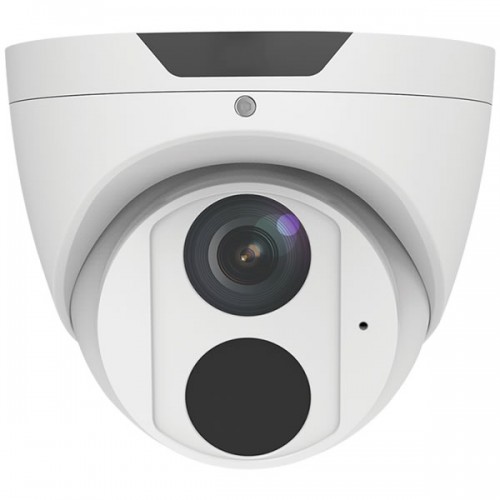

Caméra IP Galaxy Tour 5MP Starlight IR - 2.8mm
Caméra IP Galaxy Tour 5MP Starlight IR - 2.8mm
Caméra IP Galaxy Tour 5MP Starlight IR - 2.8mm
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

GX725FSL-IR28

Résumé:

5MP, 2592x1944@20fps, 0.005 Lux Starlight, AI (Human & Vehicle) 120dB WDR, Ultra265, Triple Streams, Day&Night(ICR), IR up to 98ft (30m), Smart Function, Built-in Mic, IP67, 2.8mm FixedLens, DC12V, PoE, Optional Junction Box: TR-JB03-G-IN

Connectez-vous pour le prix


  • Starlight illumination
  • Day/night functionality
  • Up to 120 dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30 m (98 ft) IR distance
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format
  • ONVIF Conformance
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • 4 KV surge protection designed for network interface
  • IP67

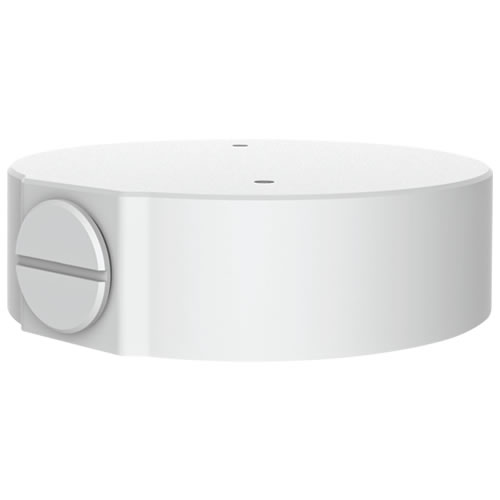

Junction Box

GX-BK-JB80X


Wall Mount

GX-BK-WM02D



Camera
Sensor 1/2.7",progressive scan,5.0 megapixel, CMOS
Lens 2.8mm@F1.6
DORI Distance

Lens: 2.8mm, Detect(m): 63, Observe(m): 25.2, Recognize(m): 12.6, Identify(m): 6.3
Angle of View (H) 105.3°
Angle of View (V) 69.5°
Angle of View (O) 136.8°
Adjustmentangle Pan: 0°~360°
Tilt: 0°~90°
Rotate:0°~360°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.005 Lux (F1.6, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 5MP(2592 x 1944): Max.20 fps, 5MP(2592 x 1944): Max.25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition: Face detection?Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max.8.9W
Dimensions (Ø x H) ?126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.41 kg(0.90 lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
