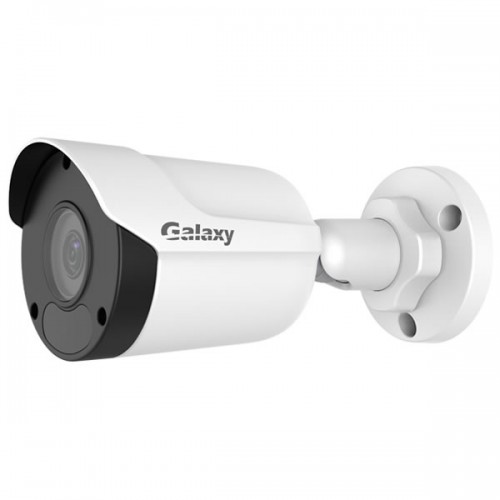

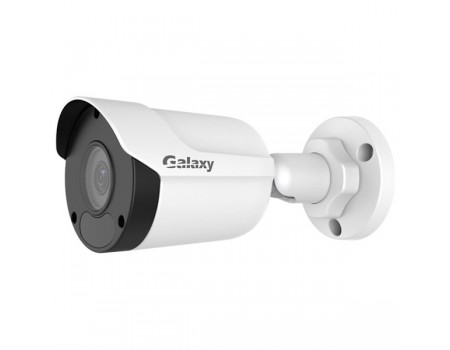

Caméra réseau fixe Galaxy Mini 2MP Mini Bullet
Data Sheet
Code du produit:
Code du produit:
GXE842MF-IR4
Résumé:1 / 2,7 "CMOS 2MP, Ultra265 / H.265, 0.02Lux, DWDR, Jour et Nuit (ICR), IR jusqu'à 30m, Triple Streams, ONVIF, IP67, 3 Axes, Objectif fixe 4mm, DC12V / PoE, -30 ° C ~ + 60 ° C
- Fonctionnalité jour / nuit
- IR intelligent, distance IR jusqu'à 30 m
- Fenêtre en verre optique à coefficient de transmission de la lumière supérieur
- fenêtre anti-reflet infrarouge pour augmenter le facteur de transmission infrarouge
- DNR 2D / 3D (réduction du bruit numérique)
- Ultra 265, H.265, H.264, MJPEG
- ROI (région d'intérêt)
- Conformité ONVIF
- Large plage de température: -30 ° C à 60 ° C (-22 ° F à 140 ° F)
- Large plage de tension de ± 25%
- IP67
- 3 axes
Camera | |
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS |
Lens | 4.0mm@F2.0 |
DORI Distance | Lens (mm) 4.0; Detect (m) 66.7; Observe (m) 26.7; Recognize (m) 13.3; Identify (m) 6.7 |
Angle of view(H) | 86.5° |
Angle of View (V) | 44.1° |
Angle of View (O) | 106.4° |
Shutter | Auto/Manual, 1~1/100000 s |
Adjustment angle | Pan: 0°~360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
Min. Illumination | Colour: 0.02Lux (F2.0, AGC ON), 0Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >52dB |
IR Range | Up to 30m (98 ft) IR range |
WDR | DWDR |
Video | |
Max. Resolution | 1920*1080 |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
H.264 code profile | Baseline Profile, Main Profile |
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
HLC | Supported |
BLC | Supported |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 8 areas |
ROI | Up to 2 areas |
Motion Detection | Up to 4 areas |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
Compatible Integration | ONVIF (Profile S+ Profile T), API |
Interface | |
Network | 10/100M Base-TX Ethernet |
General | |
Power | 12 V DC±25%, PoE (IEEE802.3 af) |
Power consumption: Max 4.5W | |
Dimensions (L × W × H) | 167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”) |
Weight | 0.37kg (0.81lb) |
Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ?95% RH(non-condensing) |
Ingress Protection | IP67 |
Reset Button | Supported |

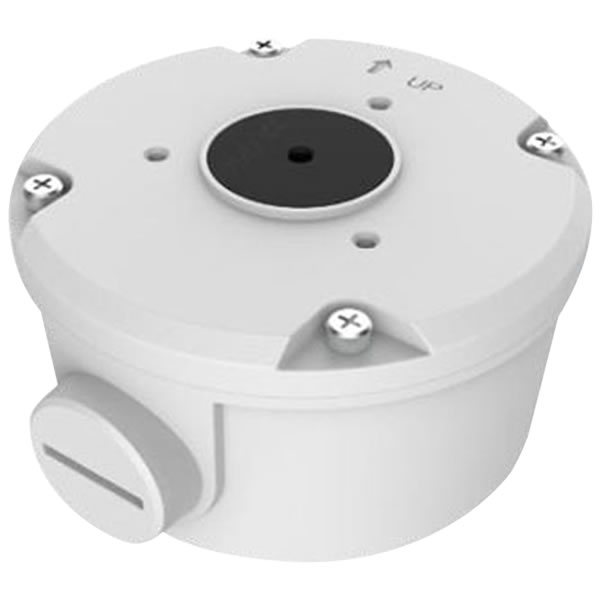

Junction Box
GX-BK-JBE05
