Data Sheet

Code du produit:

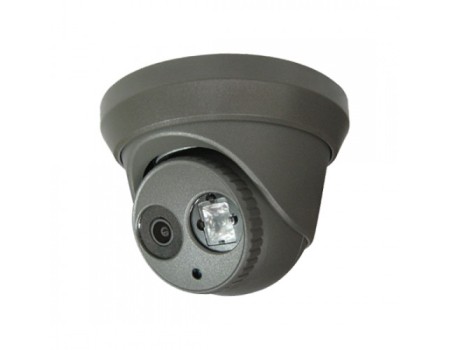

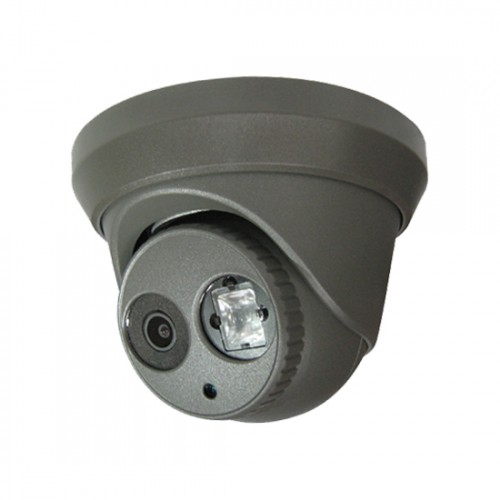

AC324-FD4M-G-3.6

Résumé:

2MP, 1920x1080@30fps, Day & Night, 0.01 Lux, IR up to 40m (131ft), IP66, 3.6mm Lens, DC12V

  • HD 1080P,1/2.9" CMOS
  • Adopt HDTVI Technology
  • True Day/Night, DNR, BLC, ATW
  • Smart IR, OSD, IP66
  • 1pc Matrix IR LED
  • Up to 131ft(40m) IR distance
  • 2.8mm Lens, DC12V
Camera
Image Sensor1/2.9" CMOS
Signal SystemNTSC/PAL
Effective Pixels1930(H)*1088(V)
Min. Illumination0.01 Lux, 0 Lux with IR
Shutter Speed1/30(1/25) s to 1/50,000 s
Lens2.8mm
Angle of View: 90deg.
Day & NightICR
SynchronizationInternal
Video Frame Rate1080p@30fps/1080p@25fps
HD Video Output1 Analog HD Output
S/N RatioMore than 52dB
Menu
Camera IDOn/Off(0-255)
AGCSupport
D/N ModeColor/BW/Auto/EXT
White BalanceAuto/User/Push/8000K/6000K/4200K/3200/HOLD
Privacy MaskOn/Off, maximum 2 zones
Motion DetectionOn/Off
BLCSupport
Anti-FlickerOn/Off
LanguageEnglish/Chenese
FunctionMirror
General
Working Temperature
/Humidity
-40°F - 140°F (-40°C - 60°C)
Humidity 90% or less (non-condensing)
Power SupplyDC 12V
Power ConsumptionMax. 3W
Weather Proof RatingsIP66
IR RangeUp to 131ft (40m)
DimensionDia.5.0" x 4.0" (Dia.126.7x102.1mm)
Weight1.1lb (500g)
