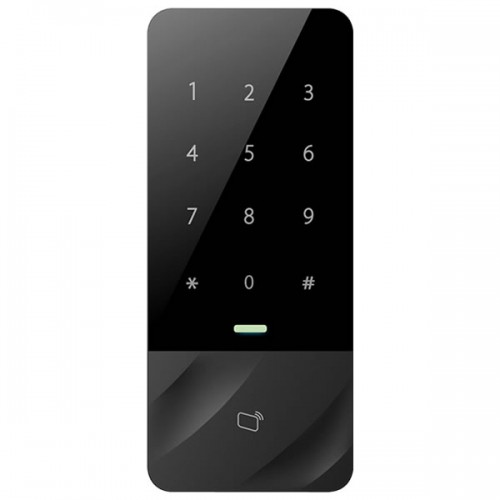

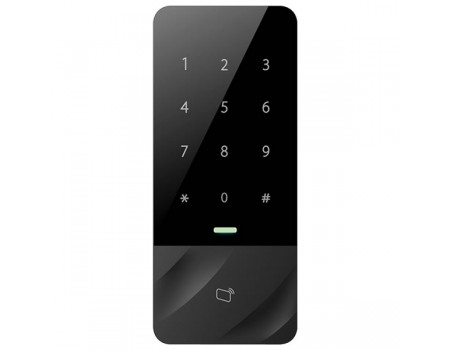

Contrôle d'accès autonome étanche de la série Galaxy Hunter
Code du produit:
GX-ASI1201E
Résumé:Prend en charge 30 000 cartes valides et 150 000 enregistrements, Prend en charge plusieurs cartes, mot de passe et combinaison, TCP / IP vers PC, interface Wiegand ou RS-485 pour lecteur, étanche
> Support 30,000 valid cards & 60,000 records
> Support multiple cards (default IC card) (“-D” means ID EM card)
> Support card, password and combination
> TCP/IP to PC
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-passback, multi-card open
> Water-proof design
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting
> IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Technical Speci?cation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mode | GX-ASI1201E | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | 32 Bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input/Output Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input | Door sensor x 1, Exit button x 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output | Relay x 1 (Door lock,) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reader | Reader x 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Read | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Read Format | 13.56MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Read Range | 1cm–2cm (max.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time | <0.1s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cardholders | 30,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Events | 60,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management | General, VIP, Guest, Patrol, Black list, Duress | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Period Setting | Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods |
Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
To PC | RJ45(10/100M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
To Reader | Wiegand26/34, RS485 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Genreal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection | IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RTC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Beep Tone | Buzzer | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Keyboard | Sensitive touch keypad with blue backlight | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 9-15V/100mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -30°C to +55°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity | 10%RH–90%RH (no-condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(W×D×H) | 62.0mm×142.0mm×23.0mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 0.5kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Environment | Outdoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certificates | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FCC | Yes |
