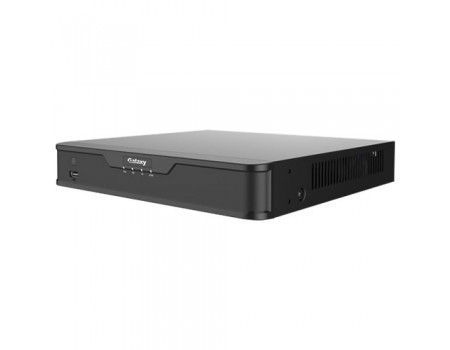

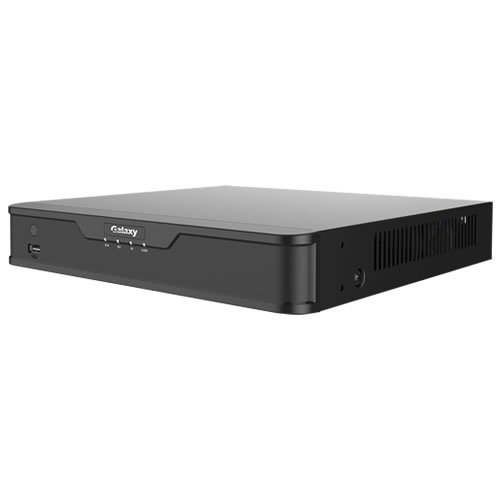

Galaxy Pro Series 2 + 8CH 3MP Hybride NVR3
Galaxy Pro Series 2 + 8CH 3MP Hybride NVR3
Data Sheet
Code du produit:
Code du produit:
GX-PRO-HDVR-208
Résumé:8CH (TVI/CVI/AHD/CVBS) up to 3MP2CH IP up to 3MP, 40Mbps, 1x HDMI, 1x VGA, H.264, Audio 4in/1out, 1x RJ45 10/100M, 1x SATA up to 8TB/ea, 2xUSB2.0, 1x RS-485
- Supporte les formats vidéo H.264
- Soutenir AHD, TVI, CVBS, caméras IP avec un accès adaptatif
- Prise en charge de la conversion de chaînes analogiques en chaînes numériques
- Entrée BNC à 8 canaux
- Jusqu'à 3MP de résolution pour l'enregistrement
- Prise en charge 1-ch HDMI, 1-ch sortie VGA jusqu'à 1920 * 1080P
- Longue distance de transmission sur câble coaxial
Video/Audio Input | |
Analog Video Input | 8-ch, BNC |
IP Video Input | 2-ch (only IP up to 10ch) |
Supported AnalogCamera Types | Support AHD input: 3MP,1080P/30Hz,1080P/25 Hz 720P/25 Hz, 720P/30 Hz Support TVI input: 3MP,1080P/30Hz, 1080P/25Hz 720P/25Hz, 720P/30Hz Support CVBS input |
Audio Input | 4-ch, RCA |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming Bandwidth | 40Mbps |
Outgoing Bandwidth | 40Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
CVBS Output | 1-ch, BNC |
HDMI/VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Recording Resolution | 3MP/1080p/720p/960H/4CIF/CIF/QCIF |
Frame Rate | Main stream: 3MP@8fps/1080p@12fps/720@30fps/960H@30fps
Sub stream: 960H/D1@12fps/CIF/QCIF@25fps/30fps |
Audio Output | 1-ch, RCA |
Synchronous Playback | 10-ch |
Decoding | |
Decoding format | H.264 |
Live View/ Playback | 3MP/1080p/720p/960H/4CIF/CIF/QCIF |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | Up to 8TB for each HDD |
External Interface | |
Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interfaces |
Serial Interface | 1 x RS485 |
USB Interface | Rear panel:1 x USB2.0,Front panel:1xUSB2.0 |
General | |
Power Supply | 12V DC Power Consumption: |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity |
Dimensions(WxDxH) | 260 x 240 x 44mm (10.2" x 9.4"x1.7") |
Weight ( without HDD ) |
Physical Interfaces
