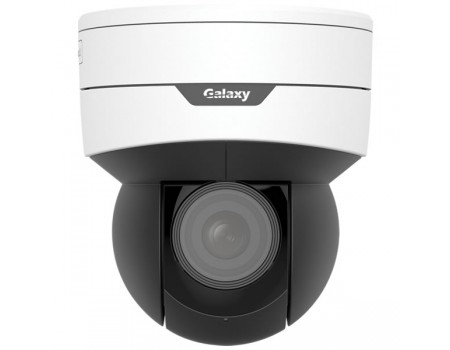

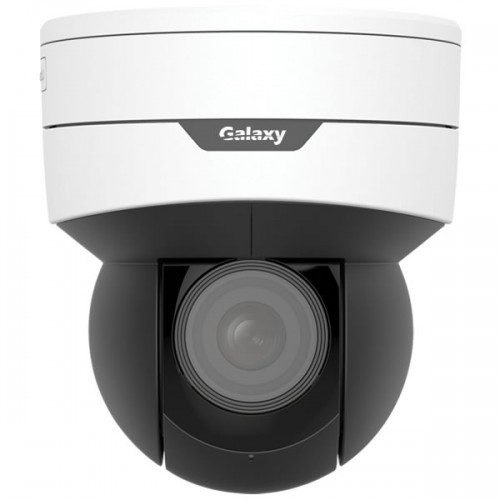

Mini caméra dôme IP Galaxy Pro 2MP 5X PTZ - 2.7 ~ 13.5mm
Data Sheet
Code du produit:
Code du produit:
GXPTZ202X5
Résumé:2MP, 1920x1080 à 30 ips, 0,03 Lux, DWDR, Ultra265 / H.265 / H.264, Triple flux, Jour et nuit (ICR), IR jusqu'à 30 m, emplacement pour carte microSD, zoom optique 5X, 2.7 ~ 13.5mm motorisé Objectif, DC12V, PoE
- Fonctionnalité jour / nuit
- IR intelligent, distance IR jusqu'à 30 m
- Fenêtre en verre optique à coefficient de transmission de la lumière supérieur
- fenêtre anti-reflet infrarouge pour augmenter le facteur de transmission infrarouge
- DNR 2D / 3D (réduction du bruit numérique)
- Ultra 265, H.265, H.264, MJPEG
- Triple flux
- ROI (région d'intérêt)
- Conformité ONVIF
- Prise en charge de l'alimentation PoE
- Large plage de température: -10 ° C à 50 ° C (14 ° F à 122 ° F)
- Large plage de tension de ± 25%
Camera | |
Sensor | 1/2.9" progressive scan, 2.0 megapixel, CMOS |
Lens | 2.7~13.5mm?AF automatic focusing and motorized zoom lens |
DORI Distance | Lens 2.7mm: Detect(43.4m), Observe(17.4m), Recognize(8.7m), Identify(4.3m) Lens 13.5mm:Detect(217m), Observe(86.8m), Recognize(43.4m), Identify(21.7m) |
Angle of View (H) | 29.1°~104.3° |
Angle of View (V) | 16°~55.1° |
Angle of View (O) | 34.5°~142.9° |
Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
Minimum Illumination | Colour: 0.03 lux (F1.2,AGC ON) 0 lux with IR |
Iris | F1.2 |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >52 dB |
IR Range | UP to 30m (98ft) |
WDR | DWDR |
Video | |
Video Compression | Ultra 265,H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile |
Frame Rate | Main Stream:1080P (1920×1080):Max. 30 fps; Sub Stream:720P (1920×1080):Max. 30 fps; Third Stream: CIF (352×288): Max. 30 fps |
HLC | Supported |
BLC | Supported |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 2 areas |
Motion Detection | Up to 4 areas |
Storage | |
Edge Storage | Micro SD, up to 256 GB |
Network Storage | ANR |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
Compatible Integration | ONVIF(Profile S, Profile G), API |
Pan & Tilt | |
Pan Range | 0° ~ 350° |
Pan Speed | 0.1°/s ~ 60°/s |
Preset speed: 60°/s | |
Tilt Range | 0° ~ 90° |
Tilt Speed | 0.1° ~ 50°/s |
Preset speed: 50°/s | |
Number of Presets | 1024 |
Home Position | Supported |
Interface | |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Built-in Mic | Supported |
General | |
Power | DC 12V±25%, PoE (IEEE802.3 af) |
Power consumption: Max 12W | |
Dimensions (Ø x H) | ?129mm×143mm(?5.07” x5.63”) |
Weight | 0.75kg(1.65lb) |
Working Environment | –10°C ~ +50°C (14°F ~ 122°F), Humidity:?95% RH(non-condensing) |
Reset Button | Supported |
