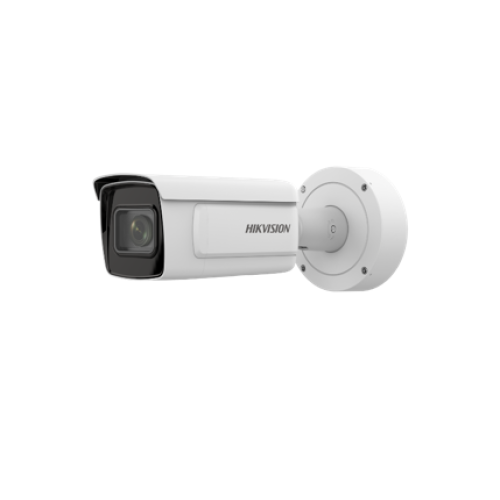

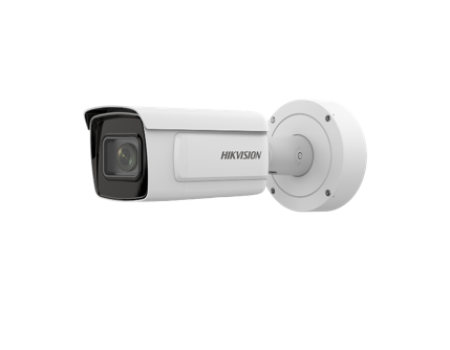

Caméra Bullet IP fixe Galaxy Platinum AI 4MP IR

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter
Blue glass module to reduce ghost phenomenon

Lens

Focal Length & FOV

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

Focus

Auto, semi-auto, manual

Iris Type

P-iris

Aperture

2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73

DORI

DORI

Wide:

8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

Tele:

8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

8 to 32 mm: 100 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.265 and H.264 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end memory card, memory card encryption and health detection are supported

Client

iVMS-4200, GuardingVision

Web Browser

Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+


Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger

Wide Dynamic Range (WDR)

140 dB

SNR

>/= 52 dB

Image Enhancement

BLC, HLC, Defog, 3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Stabilization

EIS

Interface

Video Output

1 Vp-p Composite Output (75 Ohm/CVBS) (Only for debugging)

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Alarm

2 input, 2 outputs (max. 24 VDC, 1 A)

Reset Key

Yes

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types

Road Traffic and Vehicle Detection

Blocklist and allowlist: up to 10,000 records

Support license plate recognition of motorcycles (only in checkpoint scenario)

Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

License plate recognition rate >/=98%

Metadata

Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic

General

Power

12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

Material

Aluminum alloy body

Dimension

Without -Y: Ø144 × 347 mm (Ø5.7" × 13.7")
With -Y: Ø140 × 351 mm (Ø5.5" × 13.8")

Package Dimension

405 × 190 × 180 mm (15.9" × 7.5" × 7.1")

Weight

Approx. 1950 g (4.2 lb.)

With Package Weight

Approx. 3070 g (6.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian

General Function

Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

EMC

FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Protection

IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Anti-Corrosion Protection

With -Y: NEMA 4X(NEMA 250-2018)

Automotive and Railway

EN50121-4

Other

PVC FREE
