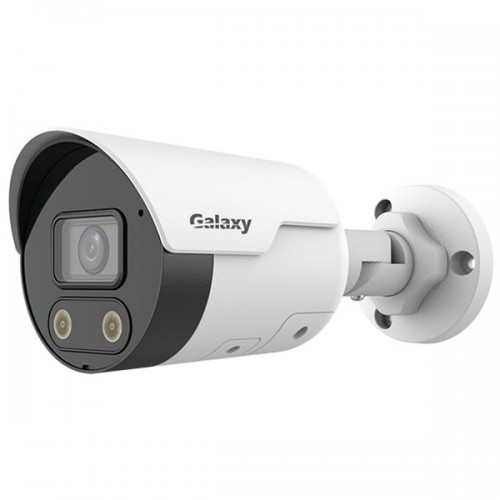

Caméra IP fixe Galaxy Pro AI Active De dissuasion 4K/8MP IR
Caméra IP fixe Galaxy Pro AI Active De dissuasion 4K/8MP IR
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

GX848A-AI-LED-28AD

Résumé:

8MP, 3840x2160@20fps, Ultra265, Triple Streams, 0.01Lux@F2.0, 120dB WDR, 3D DNR, Day&Night (ICR), IR jusqu'à 98ft (30m), fente pour carte Micro SD, micro intégré, dissuasion active, Prévention des intrusions, Humain et véhicule, IP67, Objectif fixe 2,8 mm, DC12V / PoE

Connectez-vous pour le prix
  • Image de haute qualité avec capteur CMOS 8MP, 1/2,7"
  • 8MP (3840*2160)@20fps ; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • La technologie True WDR de 120 dB permet d'obtenir une image claire dans une scène à forte luminosité
  • Prise en charge du mode couloir 9:16
  • Micro intégré
  • Haut-parleur intégré
  • Infrarouge intelligent, jusqu'à 30 m (98 ft) de distance IR
  • Prend en charge les cartes Micro SD 256 G
  • Protection IP67



Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
DORI Distance Lens (2.8mm), Detect (84.0m), Observe (33.6m), Recognize (16.8m), Identify (8.4m)
Angle of View H: 112.4°, V: 60.1°, O: 146.1°
Adjustment angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Built-in Speaker Supported
Alarm Light Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10.5W
Dimensions (L × W × H) 191× 75 × 74mm (7.5” × 3.0” × 2.9”)
Net Weight 0.41kg (0.90lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported
