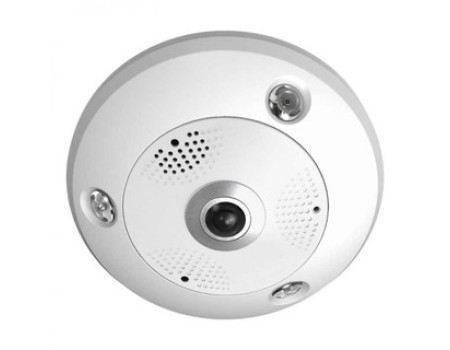

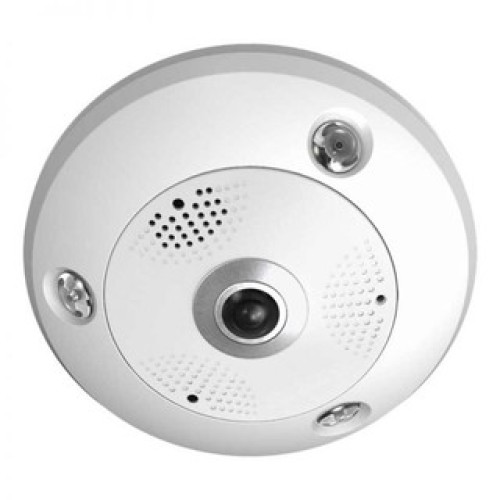

Galaxy Platinum 12MP Outdoor FishEyes IPC

Camera

Image Sensor

1/1.7'' Progressive Scan CMOS

Min. Illumination

Color: 0.05 Lux @ (F2.2, AGC ON),

B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

Digital WDR

Lens

Focal Length

1.29 mm

Aperture

F2.2

FOV

Horizontal FOV: 180, vertical FOV: 180

Lens Mount

M12

IR

IR Range

Up to 15 m IR range, 3 LEDs. Each LED is independently controlled.

Wavelength

850 nm

Compression Standard

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/ Main Profile /High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

SVC

H.265 and H.264 support

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Exception Detection

Audio exception detection

Intersection Analysis

Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

Heat Map

A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart

People Counting

Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis

Supports target filtering by height

Region of Interest

4 fixed regions for main stream


Max. Resolution

4000 × 3000

Main Stream Max. Frame Rate

50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)

60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)

Sub Stream Max. Frame Rate

50Hz: 20fps (720 × 720, 640 × 480)

60Hz: 20fps (720 × 720, 640 × 480)

Image Enhancement

BLC, HLC, defog, 3D DNR

Image Setting

Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Live View Display

Mount Type

Support table, wall, and ceiling mounting

Decoding Mode

Support hardware decoding and software decoding

Display Mode

18 display modes in total Software decoding:

Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye

+8 PTZ, hemisphere, AR hemisphere, cylinder

Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

Hardware decoding:

Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Network

Network Storage

Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Security Measure

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

5.5.73

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels, administrator, operator and user

Client

CMS,Guarding Vision

Web Browser

IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Interface

Communication Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Audio

2 built-in microphones, 1 built-in speaker, mono sound

1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)

Alarm

1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Reset Button

Yes

General

Operating Conditions

40 C to +60 C (40 F to +140 F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC±20%, PoE (802.3at, class 4),

two-core terminal block

Power Consumption

12 VDC, 1 A, max. 12.5 W s

PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W

Protection Level

IP67, IK10

Heater

Yes

Material

Metal

Dimensions

167 × 152.8 × 55 mm (6. 6" × 6" × 2.2")

Weight

Approx. 1400 g (3.09 lbs)
