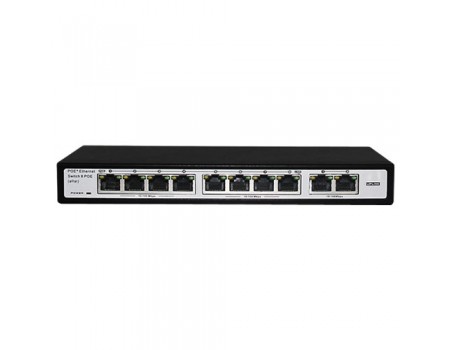

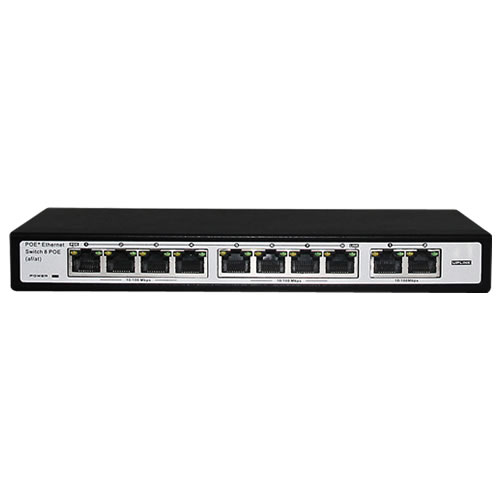

Commutateur PoE 8 ports 10/100 Mbps IEEE 802.3af / 802.3at, extra 2 uplink
Data Sheet
Code du produit:
Code du produit:
GX-POE-S1008EP-2G
Résumé:8-port 10/100Mbps IEEE 802.3af/802.3at PoE Switch, extra two port 10/100/1000Mbps uplink RJ-45, external 120W USA power adaptor included/ 250m Long Range PoE & Data
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
- Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
- 8-Port support 48V-56VDC power to PoE powered devices
- Provide 15.4W or 30W power to powered devices
- 120-watts PoE budget
- External 53VDC/2.5A power adapter included
- Extra 2-Port 10/100/1000Mbps UPLINK RJ-45
- PoE data & power transmission distance up to 100meters
- Port based VLAN for Enhancing Security
- Transmission distance up to 250meters while VLAN indicator turns on
- Backplane Bandwidth:5.6Gbps
- Restart function helps master IC reset wholly
- Excellent anti-thunder, anti-static and anti-interference ability
- Surge Protection: 6KV
- Easy and convenient to use, plug & play, no need to configure
- Galvanized housing for stable and durable working life
Power Supply | Power Supply Mode | Power Adaptor |
Voltage Range | DC48~56V | |
Power Consumption | The device <5W PoE power supply?120W | |
Network Port Parameter | Network Port | Ethernet Downlink RJ-45 Port: 8*10/100Mbps Uplink RJ-45 Port: 2*10/100/1000Mbps |
Transmission Distance | 1~8 Ethernet Downlink RJ-45 Port: 100m Mandatory 10 Mbps reach up to 250m Uplink RJ-45 Port: 100m | |
Transmission Medium | 1~8 Ethernet Downlink RJ-45 Port: Cat5e/6 standard cable Uplink RJ-45 Port: Cat5e/6 standard cable | |
PoE Standards | IEEE802.3af/at | |
PoE Power Supply Mode | End-span method | |
PoE Power Supply Wattage | Each port ?30W Whole device?120W | |
Network Switch Specification | Network Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az |
Swap Mode | Store-and- forward | |
Data-Caching Mechanism | 1M | |
MAC Address List | 4K | |
Backplane Bandwidth | 5.6Gbps | |
Forwarding Capacity | 4.16Mpps | |
Indicator/Button
| Power Indicator | Red LED on: power on |
Fast Ethernet Uplink Port | Green LED on: link up, off: link down, blinks: data transferring Yellow LED on: link speed is 1000Mbps, off: link speed is 10/100Mbps | |
PoE Indicator | 8 PoE indicators (Yellow) | |
PoE Network Port Indicator | 1~8 port indicators blink while data transferring | |
Reset Button | Press the reset button to turn on indicator (green) and the device restarts. | |
VLAN Button | Turn on VLAN button: indicator on and VLAN function restarts Turn off VLAN button: indicator off and VLAN function stops | |
Protection Level | Surge Protection | 6KV (common mode),10/700us IEC61000-4-5 2KV (differential mode),10/700us IEC610000-4-5 |
Electrostatic Protection | Contact Discharge: ±4KV Air Discharge: ±6KV Standard: IEC61000-4-2 | |
Reliability | Mean time between failures (MTBF) | ?50000h |
Mechanical | Dimensions (L*W*H) | 220mmx105mmx27.5mm |
Housing | Galvanized | |
Body Color | Black | |
Net Weight | 612g | |
Environmental
| Operating Temperature | 0?~55? |
Storage Temperature | -40?~70? | |
Relative Humidity | 0~95% (non-condensing) |
