Data Sheet

Code du produit:

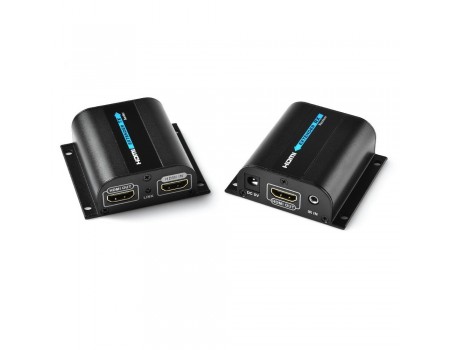

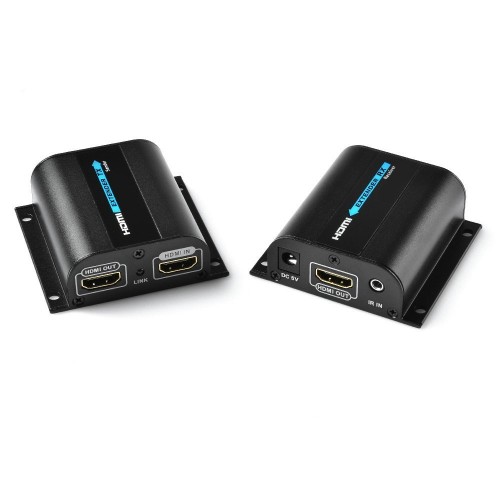

ADP-HDMICAT5E

Résumé:

Étend la norme HDMI jusqu'à 60 mètres pour 1080p sur un CAT6, le signal HDMI compatible avec HDCP, prend en charge les résolutions jusqu'à 1080p Full HD, le soutien étendre le contrôle IR, le soutien HDMI 3D, HDMI 1080P

Taking advantage of the latest transmission technology to extend HDMI video up to 120m/394ft with max. resolution up to 1080P@60Hz through network Cable.

  • Transmit HDMI signal over network cable
  • Extend HDMI signal over a single CAT6 up to 120m
  • Transmitting resolution up to 1920x1080P@60Hz
  • Compatible with existing network
  • Support 7x24 hour of continuous work
  • Functional as both extender and splitter
  • Support various kinds of video signal input, such as VGA, SDI and DVI
Connection

...

...

Model ADP-HDMICAT5E
HDMI Signal Compatible with HDCP
Network cable Low resistance and consumption oxygen-free copper core
CAT6, CAT6A, CAT7
Support resolution 480i/480P@60Hz, 576i@50Hz, 576P@50Hz,
720P@50/60Hz, 1080P@50/60Hz, 1080i@50/60Hz
Transmission distance Max. 60 meter for 1080P Full HD through single CAT6
IR remote control Support 20~60KHz wide frequency IR remote control
Working Temperature 0-60 Celsius degree
Power supply DC 5V/1A
Power consumption TX 2W, RX
Dimension 72*67*25mm (L*W*H)
Net Weight TR 170g; RX 170g

  • 1x HDMI extender sender TX
  • 1x HDMI extender sender RX
  • 2x Power supply DC 5V/1A
