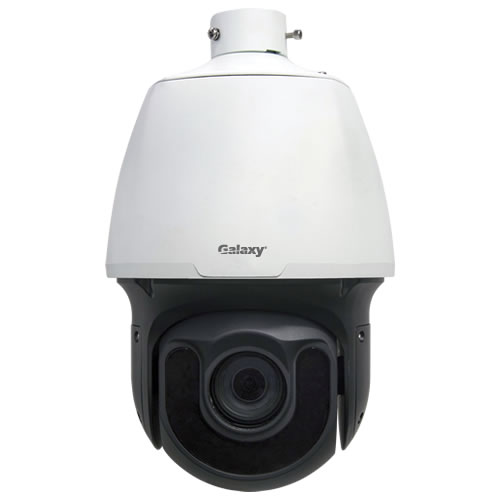

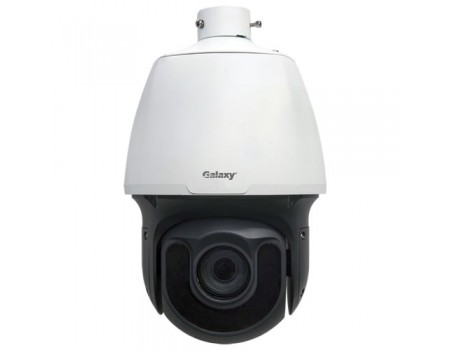

Caméra dôme PTZ 22x IR Starlight 2MP Galaxy Pro Series - 6.5 ~ 143mm
Data Sheet
Code du produit:
Code du produit:
GXPTZ799SLX22
Résumé:1/1,8 " CMOS, ICR, 1920x1080 @ 30fps, 0.002 Lux Starlight, 120dB WDR, H.264, triple flux, IR jusqu'à 492ft (150m), harnais amélioré, alarme, audio, sortie BNC, fente pour carte micro SD, fenêtre anti-réflexion IR , 5 ", IP66, -40 ~ 70°C, RJ45, zoom optique 22x
- Illumination des étoiles
- Précision et mise au point rapide
- IR intelligent, jusqu'à 150 m (492 pi) de distance IR
- Fenêtre en verre optique avec transmission de la lumière plus élevée
- Fenêtre anti-réflexion IR pour augmenter la transmission infrarouge
- H.264 High Profile
- Triple flux
- Taux de trame jusqu'à 60 fps avec 1080P
- Conformité ONVIF
- Fonctionnalité innovante de déneigement
- Système de dissipation thermique plus efficace
- Technologie de controle de température intelligente
- Protection contre les surtensions de 6 kV conçue pour l'interface réseau
Camera | |
Sensor | 1/1.9", 2 megapixel, progressive scan, CMOS |
Lens | 6.5 ~ 143 mm (22x optical zoom) |
Angle of View (H) | 70deg. (wide) ~ 3.76deg. (tele) |
Iris | Auto/Manual; F1.5 ~ F3.4 |
Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/8000 s |
Minimum Illumination | Colour: 0.002 lux (F1.6, 50IRE) B/W: 0.0002 lux (F1.6, 50IRE) |
S/N | >52dB |
Day/Night | IR-cut filter with auto switch (ICR) |
IR Range | up to 492ft (150m) |
Video | |
Max. Resolution | 1920 x 1080 |
Video Compression | H.264,MJPEG |
Frame Rate | 1080P (1920x1080):Max.60 fps; 720P (1280x720):Max.60 fps; D1 (720x576):Max.25 fps |
Video Streaming | Triple |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
Digital Zoom | Supported |
Audio | |
Audio Compression | G.711 |
Two-way audio | Supported |
Storage | |
Edge Storage | Micro SD, up to 64 GB |
Network | |
Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,NTP,FTP,HTTP,SNMP,SIP |
Compatible Integration | ONVIF, IMOS,API |
Pan & Tilt | |
Pan Range | 360deg. (endless) |
Pan Speed | 0.1deg./s ~ 240deg./s |
Preset speed: 300deg./s | |
Tilt Range | 15deg. ~ +90deg. (auto reverse) |
Tilt Speed | 0.1deg. ~ 160deg./s |
Preset speed: 240deg./s | |
Number of Preset | 255 |
Patrol | Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16. |
Pattern | Up to 16 patterns, with the total recording time not less 15 minutes per pattern |
Interface | |
Audio I/O | audio cable |
Input: impedance 35 kohm; amplitude 2 V [p-p] | |
Output: impedance 600 ohm; amplitude 2 V [p-p] | |
Alarm I/O | 2 / 1 |
Serial Port | 1 RS485 |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Video Output | 1 BNC, impedance 75 ohm; amplitude 1 V [p-p] |
General | |
Power | 24 V AC (Default), 24 V DC |
Power consumption: 12 ~46W (IR:27W, heater: Max. 12W) | |
Dimensions (Dia. x H) | Dia.227 x 359.4 mm (Dia.8.9" x 14.2") |
Weight | 5.5 kg (12.1 lb) |
Working Environment | 40°C ~ +70°C (-40°F ~ 158°F), Humidity |
Ingress Protection | IP66 |
