Transmetteur vidéo passif à canal unique
Data Sheet
Code du produit:
Code du produit:
SED-BALUN-HD202
Résumé:Transmission en temps réel sur UTP cat5e/6, aucune alimentation requise, empilable pour une installation soignée, compatible avec toutes les Caméras analogiques HD-TVI/CVI/AHD/CVBS, filtre à ondes, antistatique, protection contre la foudre

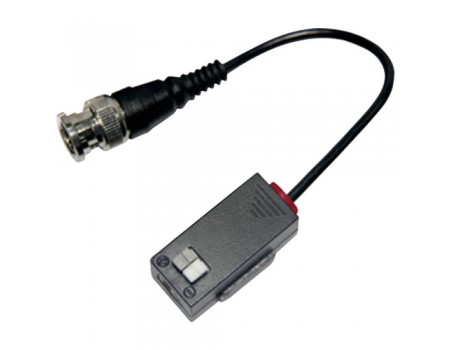

The SED-BALUN-HD202 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The SED-BALUN-HD202 is compatible with all HD-TVI/CVI/AHD/CVBS analog cameras.
The SED-BALUN-HD202 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used with multiple channel HD balun receiver hubs, the SED-BALUN-HD202 eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the SED-BALUN-HD202 allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The SED-BALUN-HD202 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Wire and Cable Recommendations
The SED-BALUN-HD202 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video signals can coexist
in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.
For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.
- Real-time transmission over UTP cat5e/6
- No power required
- Stackable for neat installation
- Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
- Color video max up to 190m (623ft) for HD-TVI 720P camera
Color video max up to 190m (623ft) for HD-TVI 1080P camera
Color video max up to 200m (656ft) for HD-TVI 3MPX camera - Color video max up to 440m (1443ft) for HD-CVI 720P camera
If you adjust saturation of DVR, max up to 470m (1541ft)
Color video max up to 230m (754ft ) for HD-CVI 1080P camera
Color video max up to 230m (754ft ) for HD-CVI 4MPX camera - Color video max up to 320m (1049ft) for HD-AHD 720P camera
Color video max up to 320m (1049ft) for HD-AHD 960P camera
Color video max up to 250m (820ft) for HD-AHD 1080P camera
Color video max up to 180m (590ft) for HD-AHD 3MPX camera
Color video max up to 200m (656ft ) for HD-AHD 4MPX camera
Color video max up to 200m (656ft ) for HD-AHD 5MPX camera - Color video max up to 400m (1312ft) for CVBS camera
- Male BNC with extended 5.9 inch (150mm) mini-coax pigtail
- Reliable push-pin terminal block connection for UTP cat5e/ 6
- Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
| Model | SED-BALUN-HD202 | ||||||
| Product Name | Single Channel HD Passive Video Transmitter | ||||||
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||||||
| Video | Video Format | HD-TVI/CVI/AHD/CVBS | |||||
| Operating Frequency | DC to 42MHz | ||||||
| Max Distance | HD-TVI 720P 190m(623ft) | HD-TVI 1080P 190m(623ft) | HD-TVI 3MPX 200m( 656ft) | ||||
| HD-CVI 720P 440m(1443ft) | HD-CVI 1080P 230m(754ft) | HD-CVI 4MPX 230m(754ft) | |||||
| HD-AHD 720P 320m(1049ft) | HD-AHD 960P 320m(1049ft) | HD-AHD 1080P 250m(820ft) | HD-AHD 3MPX 180m(590ft) | HD-AHD 4MPX 200m(656ft ) | HD-AHD 5MPX 200m(656ft ) | ||
| Common-mode/Differential-mode rejection | 15KHz to 42MHz 60 dB type | ||||||
| Impedance | Coax: Male BNC 75ohm unbalanced | ||||||
| UTP: push-pin terminal block 100ohm balanced | |||||||
| Attenuation | 1.5 dB typ Max | ||||||
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |||||
| Category Type | UTP cat 5e/6 | ||||||
| Impedance | 100 +/- 20 ohms | ||||||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||||||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||||||
| Power | No external power required | ||||||
| Connector | Video input/output | Male BNC connector | |||||
| Video input/output | Tool-less push-pin terminal block | ||||||
| Protection | Surge Protection | renewable solid state surge protection | |||||
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||||||
| Video Output | 2KV(different mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||||||
| Mechanical | Housing | ABS engineering plastic | |||||
| Body Color | Black | ||||||
| Dimensions(L*W*H) | 180*16*17.6mm (BNC connector & cable excluded) | ||||||
| Net Weight | 40g | ||||||
| Environmental | Operating Temperature | -20deg. ~ 70deg. C | |||||
| Relative Humidity | 0~95% (non-condensing) | ||||||
| Storage Temperature | -40deg. ~ 150deg. C | ||||||
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, securities, financial information display system
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and banks
- School Campuses
Application Diagram
Note
- The actual transmission distance will vary according to specific camera, DVR and on-site environment
- Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality
- If you adjust saturation of DVR, video transmission distance could be farther (HD-CVI 720P: max up to 470m(1541ft)
- If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.
- The device is not waterproof and not to be used at outdoors
