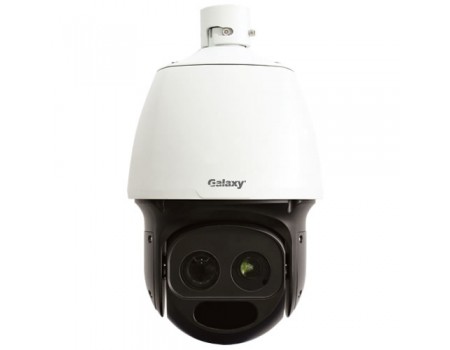

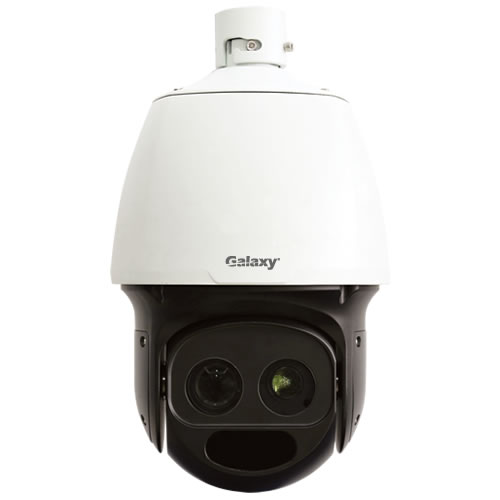

Galaxy Pro Series 2MP 33x Starlight Laser IR PTZ Dome Camera (w/PoE) - 4.5~148.5mm
Galaxy Pro Series 2MP 33x Starlight Laser IR PTZ Dome Camera (w/PoE) - 4.5~148.5mm
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

GXPTZ788SLX33-P

Résumé:

1/2.8" CMOS, 0.002 lux Starlight, ICR, 1920x1080@60fps, H.265, Triple Streams, IR up to 1640ft (500m), Alarm, Audio, VF IR Laser, Micro SD Card Slot, RJ45, IP66, BNC outpt, -40~70deg.C, 33x Optical Zoom Lens (4.5~148.5mm), AC24V/DC24V/PoE

Connectez-vous pour le prix
  • Features
    • Starlight illumination
    • 33x optical zoom
    • Accurate and fast focusing
    • IR anti-reflection window to increase the infrared transmittance
    • Optical glass window with higher light transmittance
    • Smart IR, 30m(98ft) IR distance
    • Vari-focal laser: 30m to 500m(1640ft) distance, proportional to optical zoom of camera module
    • H.265, H.264, MJPEG
    • Embedded smart algorithm
    • Triple streams
    • Customized OSD
    • ONVIF Conformance
    • Special structure and window design to battle bad weather (especially in dusty weather)
    • Innovative snow-removing functionality
    • Intelligent temperature control technology
    • More effective heat dissipation system
    • 6 KV surge protection designed for network interface
Specification
Camera
Sensor1/2.8" progressive scan, 2megapixel, CMOS
Angle of View(H)62.93deg. (wide)~3.67deg. (tele)
Zoom/Focus4.5 ~ 148.5 mm (33x optical zoom)
ShutterAuto/Manual, shutter time: 1/6 s ~ 1/100000 s
Minimum IlluminationColour: 0.002 lux (F1.6, AGC ON) 0 lux with IR
IrisAuto/Manual, F1.6 ~ F4.4
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
WDR120 dB
Video
Video CompressionH.265, H.264,MJPEG
Frame Rate1080P (1920x1080):Max.60 fps; 1080P (1920x1080):Max.15 fps;D1 (720x576):Max.8 fps 1080P (1920x1080):Max.60 fps;720P (1280x720):Max.30 fps;D1 (720x576):Max.15 fps
Video StreamingTriple
HLCSupported
Evaluative MeteringSupported
OSDTime, custom, preset, PTZ coordinates, zoom, cardinal direction, network interface
Privacy MaskUp to 8 areas
Smart
Behavior DetectionIntrusion, crossing line, motion detection, Auto tracking
Exception DetectionAudio detection
Intelligent IdentificationFace detection
Statistical AnalysisPeople counting
Audio
Audio CompressionG.711
Two-way AudioSupported
Storage
Edge StorageMicro SD, up to 128 GB
Network
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible IntegrationONVIF, API
Pan & Tilt
Pan Range360deg.
Pan Speed0.1deg./s ~ 240deg./s
Preset speed: 300deg./s
Tilt Range-15deg. ~ +90deg. (auto reverse)
Tilt Speed0.1deg. ~ 160deg./s
Preset speed: 240deg./s
Number of Presets256
PatrolPreset patrol, route patrol, recorded patrol
Home PositionSupported
Interface
Audio I/OAudio interface
1 Input: impedance 35 kohm; amplitude 2 V [p-p]
1 Output: impedance 600 ohm; amplitude 2 V [p-p]
Alarm I/O1/ 1
Network10M/100M Base-TX adaptive Ethernet network interface
Reset ButtonSupported
General
Power24 V AC+/-25% (default power supply), 24V DC+/-25%, PoE (PSE Required)
Power consumption: 8 W ~ 49.5 W
Dimensions (Dia. x H)Dia.227 mm x 359.4 mm (Dia.8.9" x 14.2")
Weight5.6 kg (12.3 lb)
Working Environment-40deg.C ~ +70deg.C (-40deg.F ~ 158deg.F), Humidity <= 95% RH(non-condensing)
Ingress ProtectionIP66
IRBuilt-in VF laser IR

(Galaxy_PRO_CAM_2.0MP)(Galaxy_PRO_CAM_Starlight)(IP_Starlight)


(Galaxy_NV_CAM_2.0MP)


Junction Box

GX-BK-PTZJB12


Wall Mount

GX-BK-PTZWM
