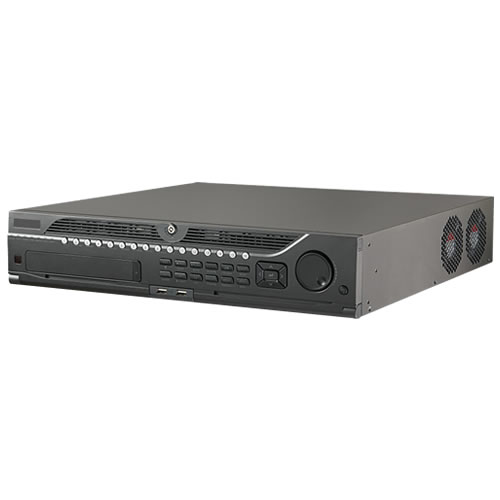

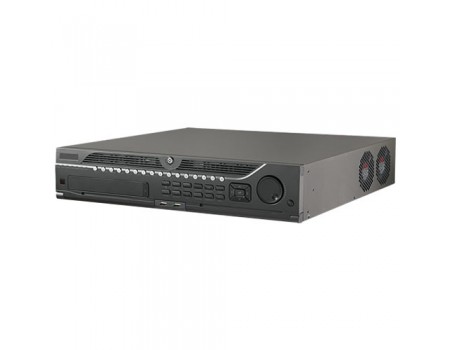

Galaxy Platinum 8CH HD-TVI 4K H.265 + Pentaplex DVR
Data Sheet
Code du produit:
Code du produit:
TVI-DK8-3808
Résumé:8CH HDTVI/CVI/AHD/CVBS jusqu'à 5MP, 10CH IP jusqu'à 12MP, H.265 +, 1xHDMI jusqu'à 4K, 1xHDMI/VGA jusqu'à 1080P, Dual Stream, Audio 8in/2out, Alarme 16in/8out, 8xSATA à 8 To, eSATA, RAID 0/1/5/6/10, 2xUSB2.0, 1xUSB3.0, RS-232, RS-485
- Codage H.265 +/H.265/H.264 +/H.264 pour le flux principal et H.265/H.264 pour le sous-flux des caméras analogiques
- Entrée de signal HDTVI/HDCVI/AHD/CVBS auto-adaptative
Connectable to H.265+/H.265/H.264+/H.264 IP cameras - Jusqu'à 5 MP de résolution pour l'enregistrement
- Sortie HDMI jusqu'à une résolution de 4K (3840 x 2160)
- Transmission longue distance sur UTP et câble coaxial
- Lecture synchrone 8 canaux, e-SATA, 8 emplacements remplaçables à chaud, RAID 0/1/5/6/10
- Fonction intelligente: VCA (Video Content Analytics), Passage à niveau, People couting
| Video/Audio input | Video compression |
H.265+/H.265/H.264+/H.264 |
| Analog video input | 8-ch, BNC interface (1.0 Vp-p, 75 ohm), supporting coaxitron connection | |
| HDTVI input | 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 | |
| AHD input | 720p25, 720p30, 1080p25, 1080p30 | |
| HDCVI input | 720p25, 720p30, 1080p25, 1080p30 | |
| CVBS input | Support | |
| IP video input | 10-ch (up to 18-ch), Up to 12 MP resolution, Supports H.265+/ H.265/ H.264+/ H.264 IP cameras | |
| Network bandwidth | 260 Mbps | |
| Audio compression | G.711u | |
| Audio input | 8-ch, RCA (2.0 Vp-p, 1 Kohm) | |
| Video/Audio output | CVBS output | 1-ch, BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| HDMI1/VGA output |
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz | |
| HDMI2 output | 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz | |
| Video loop | Support | |
| Encoding resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame rate | Main stream: 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps (P)/ 30fps (N) | |
| Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 10 Mbps | |
| Audio output | 2-ch, RCA (Linear, 1 Kohm) | |
| Audio bit rate | 64 Kbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Synchronous playback | 8-ch | |
| Network management | Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | |
| Hard disk | SATA | 8 SATA interface |
| eSATA | Support | |
| Capacity | Up to 8 TB capacity for each disk | |
| Disk array | Array type | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| External interface | Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 Kohm) (independent) |
| Network interface | 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| USB interface | Front panel: 2 x USB 2.0, Rear panel: 1 x USB 3.0 | |
| Serial interface | RS-232, RS-485 (full-duplex), Keyboard | |
| Alarm in/out | 16/8 | |
| General | Power supply | 100 to 240 VAC |
| Consumption (without HDD) | ||
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working humidity | 10% to 90% | |
| Dimensions (W x D x H) | 445 x 470 x 90 mm (17.5 x 18.5 x 3.5 inch) | |
| Weight (without HDD) |
Physical Interfaces
