Data Sheet

Code du produit:

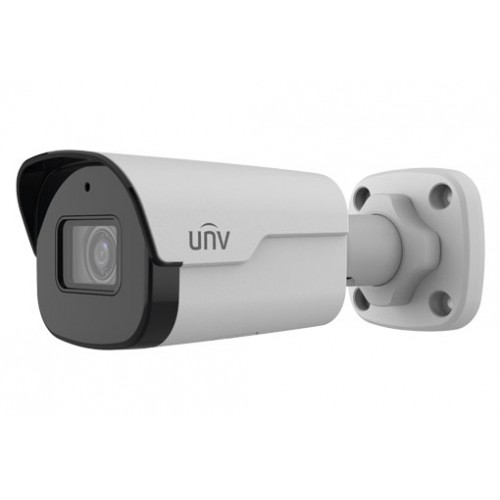

SC-2083-IS-F28

Résumé:

8MP CMOS, Ultra265/H.265, 0.05Lux, 120dBWDR, Day&Night (ICR), IR up to 98ft (30m), Dual Streams, ONVIF, IP67, 3-Axis, 2.8mm Fixed Lens, DC12V/PoE, -30°C ~ +60°C Junction Box: GX-BK-JBE05

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.265, H.264, MJPEG

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C to 60°C (-22°F to 140°F)

* Wide voltage range of ±25%

* IP67

* 3-Axis

Camera
Sensor1/3", 8.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.0
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm8433.616.88.4



Angle of View (H)112.7°
Angle of View (V)60.1°
Angle of View (D)146.5°
Adjustment anglePan: 0°~360°Tilt: 0°~90°Rotate: 0°~360°
ShutterAuto/Manual, 1~1/100000 s
Minimum IlluminationColour: 0.05 Lux (F2.0, AGC ON)
0 Lux with IR on
Digital noise reduction2D/3D DNR
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline Profile, Main Profile
Frame RateMain Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps
Sub Stream:720P (1280*720): Max. 20 fps
Third Stream:4CIF (704*576): Max. 20 fps
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingNA
HLCSupported
BLCSupported
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible IntegrationONVIF(Profile S, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network10/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (L × W × H)167.3×62.9×62.7mm (6.6”×2.5”×2.5”)
Net Weight0.45kg (0.99lb)
MaterialMetal
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ?95% RH(non-condensing)
Strorage Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ?95% RH(non-condensing)
Surge Protection2KV
Ingress ProtectionIP67
Reset ButtonSupported
