Data Sheet

Code du produit:

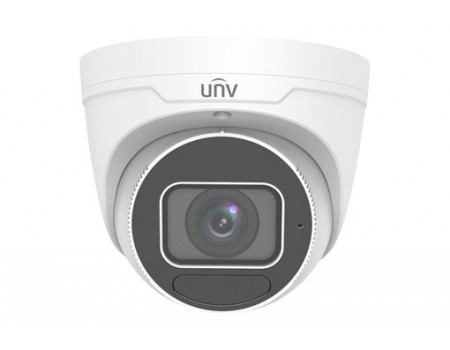

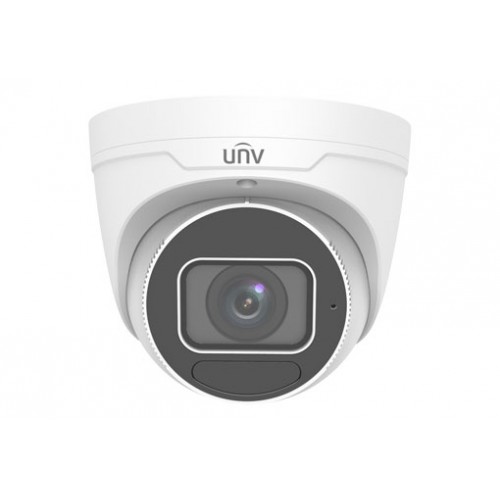

SC-3H43F-IGZ

Résumé:

2688x1520@30fps, Ultra265, Triple Streams, 120dB WDR, 3D DNR, Day&Night (ICR), IR up to 99ft (30m), Micro SD Card Slot, Built-in Mic, Intrusion Prevention, Human & Vehicle, IP67, IK10, 2.7~13.5mm Motorized VF Lens, DC12V / PoE Optional Junction Box: GX-BK-JB80X / Wall Mount: GX-BK-WME03

•High quality image with 4MP, 1/3"CMOS sensor
•4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
•Ultra 265, H.265, H.264, MJPEG
•120dB true WDR technology enables clear image in strong light scene
•Support 9:16 Corridor Mode
•Built-in Mic
•Smart IR, up to 40m (131ft) IR distance
•Supports 256 G Micro SD card
•IP67 protection
•Support PoE power supply
•3-Axis ?

Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N>56dB
WDR120dB
Lens
Lens Type2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Lens Mount?14
Angle of View (H)102.79°~ 30.86°
Angle of View (V)54.50°~ 17.49°
Angle of View (O)106.94°~35.49°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.025.212.66.3
12270.0108.054.027.0
Illuminator
IR RangeUp to 40m (131ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupported
9:16 Corridor ModeSupported
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image SettingImage rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction2D/3D DNR
Smart IRSupported
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupported
BLCSupported
DefogDigital Defog
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS,  802.1x, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API , SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network10M/100M Base-TX Ethernet
Built-in MicSupported
Certifications
EMCFCC: FCC Part 15
SafetyCE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)?129 x 110mm (Ø5.1” x 4.3”)
Weight0.67kg (1.48lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection6KV
Reset ButtonSupported
Ingress ProtectionIngression protection: IP67
