Data Sheet

Code du produit:

GX-FACEDEEP3

Résumé:

Dual Core 1.0Ghz High Speed Processor, 0.6 Tops Enhanced AI computing power . Latest Bionano Face Algorithm, Full HD wide angles camera, up tp 6000 dynamic faces database, upload template with photos or live collection. IR live face detection. Standard Mask deteection Function. 5"TFT-LCD Screen. Door Sensor and Exit button Scheduled Bell, Tamper Alarm Inbuilt Webserver Standard RFID EM Card Module, TCP/IP, USB Flash, RS232, Wiegand output, Wi-Fi, Mask Detection

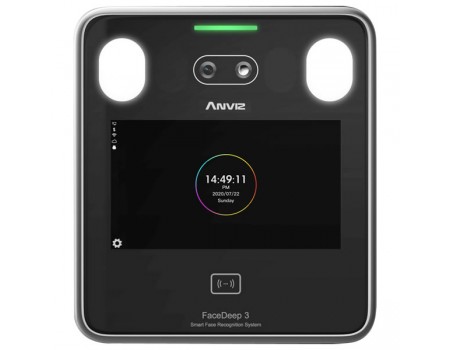

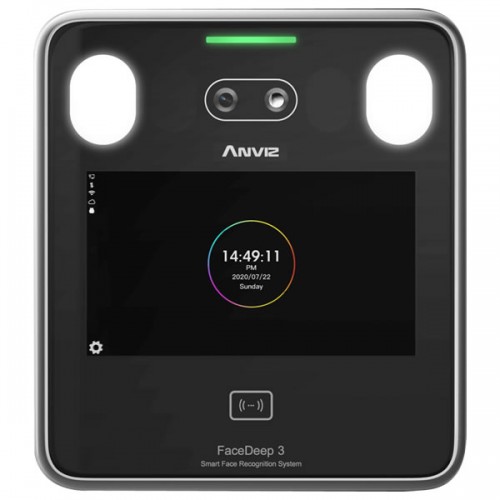

FaceDeep 3 series are the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It supports up to 10,000 dynamic face database and rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.

  • System Operation Scenario
    Facial recognition and mask-wearing checked by the FaceDeep 3 all at once. After the scan, the information redirects to the administration via both CrossChex App and CrossChex Web software.
  • CrossChex System
    The cloud solution provide accurate and convenient remote management.
    Easy to adapt to all forms of work conditions ( * Refer to Specification Sheet )
  • Ergonomic Design for Convenience
    Flexible installation to support the extended height range [ 120 - 190 cm?47.24 - 74.80")] for face recognition
  • System Configuration Diagram
    Flexible communication for WiFi or Lan. Convenient management for Web-server and PC software.



Series GX-FACEDEEP3 GX-FACEDEEP3-IRT

Model

FaceDeep 3

FaceDeep 3 Pro

FaceDeep 3 4G

FaceDeep 3 IRT

FaceDeep 3 Pro IRT

FaceDeep 3 4G IRT

General
Identification Mode Face, Card, ID+Password
Face Recognition Distance 0.5 ~ 1.5m (19.69 ~ 59.06")
Face Recognition Speed <0.3 S
RFID Technology 125KHz EM 13.56 MHz Mifare 13.56 MHz Mifare 125KHz EM 13.56 MHz Mifare 13.56 MHz Mifare
IRT(Palm Temperature Detection)
Detection Distance - 10~20mm( 0.39~0.79")
Temperature Range - 23°C~46°C ( 73°F~114°F )
Temperature Accuracy* - +/-0.3°C( 0.54°F )
Capacity
Max Users 6,000 6,000 (Standard), 10,000 (Customized) 6,000 (Standard), 10,000 (Customized) 6,000 6,000 (Standard), 10,000 (Customized) 6,000 (Standard), 10,000 (Customized)
Max Cards 6,000 6,000 (Standard), 10,000 (Customized) 6,000 (Standard), 10,000 (Customized) 6,000 6,000 (Standard), 10,000 (Customized) 6,000 (Standard), 10,000 (Customized)
Max Logs 100,000
Function
Time Attendance Mode 8
Group, Time Zone 16 Access Groups, 32 Time Zone
WebServer Yes
Record Auto Inquiry Yes
Voice Prompt Yes
Clock Bell Yes
Multiple Language Yes
Hardware
CPU Dual 1.0 GHz
Camera Dual Camera ( VIS & NIR )
Scanning Area Horrizontal:+/-20°?Vertical:+/-20°
Display 5" TFT Touch Screen Resolution 720*1280
Smart LED Support
Dimensions(W x H x D) 14.6x16.5x3.4 cm (5.75x6.50x1.34”)
Working Temperature -5°C~6°C 23°F~160°F
Humidity 0% to 95%
Power Input DC 12V 2A
Interface
TCP/IP Yes
RS485 Yes
RS485 Yes
Wi-Fi Yes - - Yes - -
Wi-Fi + Bluetooth - Yes - - Yes -
4G - - Yes - - Yes
Relay 1 Relay Out
Tamper Alarm Yes
Wiegand 1 In / 1 Out
Door Contact Yes
Software Compatibility
CrossChex Standard Yes
CrossChex Cloud Yes
