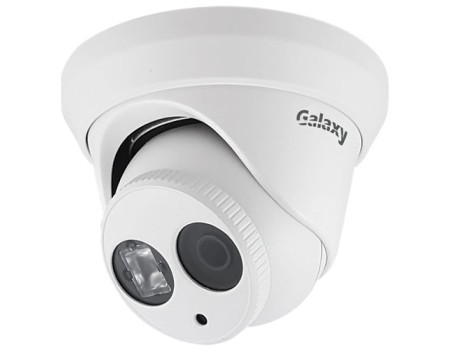

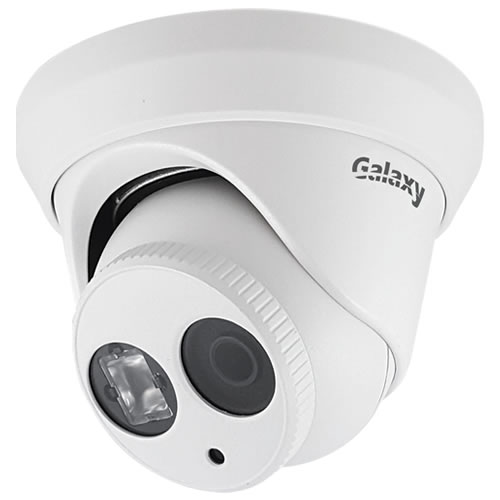

Caméra Tourelle HD-TVI Extérieure Galaxy Platinum 2MP IR
Caméra Tourelle HD-TVI Extérieure Galaxy Platinum 2MP IR
Data Sheet
Code du produit:
Code du produit:
AC324-FD4M-3.6
Résumé:2MP, 1920x1080@25fps, 0.01 Lux, Day & Night, IR up to 40m (131ft), 3.6mm Lens, DC12V, IP66,
- HD 1080P,1/2.9" CMOS
- Adopt HDTVI Technology
- True Day/Night, DNR, BLC, ATW
- Smart IR, OSD, IP66
- 1pc Matrix IR LED
- Up to 131ft(40m) IR distance
- 2.8mm Lens, DC12V
Camera | |
Image Sensor | 1/2.9" CMOS |
Signal System | NTSC/PAL |
Effective Pixels | 1930(H)*1088(V) |
Min. Illumination | 0.01 Lux, 0 Lux with IR |
Shutter Speed | 1/30(1/25) s to 1/50,000 s |
Lens | 2.8mm Angle of View: 90deg. |
Day & Night | ICR |
Synchronization | Internal |
Video Frame Rate | 1080p@30fps/1080p@25fps |
HD Video Output | 1 Analog HD Output |
S/N Ratio | More than 52dB |
Menu | |
Camera ID | On/Off(0-255) |
AGC | Support |
D/N Mode | Color/BW/Auto/EXT |
White Balance | Auto/User/Push/8000K/6000K/4200K/3200/HOLD |
Privacy Mask | On/Off, maximum 2 zones |
Motion Detection | On/Off |
BLC | Support |
Anti-Flicker | On/Off |
Language | English/Chenese |
Function | Mirror |
General | |
Working Temperature /Humidity | -40°F - 140°F (-40°C - 60°C) Humidity 90% or less (non-condensing) |
Power Supply | DC 12V |
Power Consumption | Max. 3W |
Weather Proof Ratings | IP66 |
IR Range | Up to 131ft (40m) |
Dimension | Dia.5.0" x 4.0" (Dia.126.7x102.1mm) |
Weight | 1.1lb (500g) |
