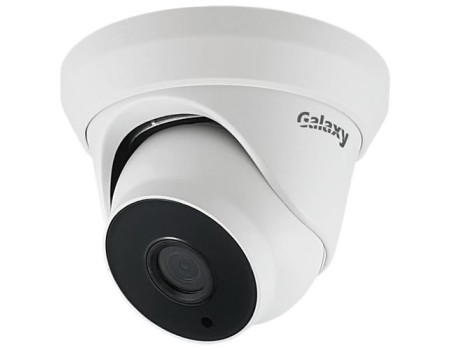

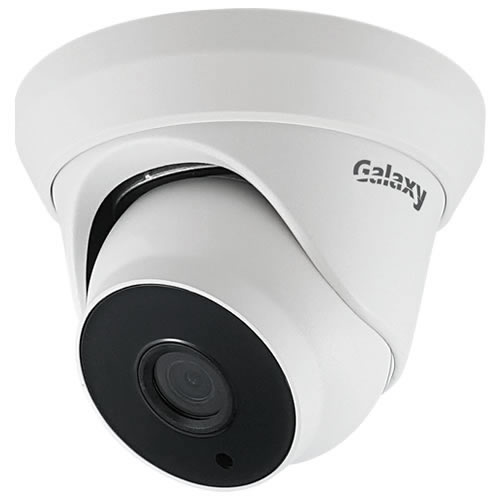

5MP TURRET DOME Camera
Sale
Data Sheet
Code du produit:
Code du produit:
TVI-C715F-3IR
Résumé:5MP high-performance CMOS, 2560 × 1944 resolution, 2.8mm fixed focal lens, EXIR 2.0, smart IR, up to 40 m IR distance, OSD menu, 2D DNR, DWDR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, Up the Coax
• 5MP high-performance CMOS
• 2560 × 1944 resolution
• 2.8mm fixed focal lens
• EXIR 2.0, smart IR, up to 40 m IR distance
• OSD menu, 2D DNR, DWDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the Coax
| Image Sensor | 5MP CMOS image sensor |
|---|---|
| Resolution | 2592 (H) × 1944 (V) |
| Min. illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8mm |
| Horizontal Field of View | 85.5° |
| Lens Mount | M12 |
| Day & Night | IR cut Filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| Frame Rate | PAL: 5 MP@20fps, 4MP@25fps, 1080p@25fps / NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps |
| AGC | Support |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| BLC | Support |
| Digital Wide Dynamic Range | Support |
| Language | English |
| Functions | Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 4.3 W |
| Protection Level | IP67 |
| Material | Enclosure: Plastic / Main body: Metal |
| IR Range | Up to 40 m |
| Communication | Up the coax |
| Dimensions | 110 mm × 93.2 mm (Ø4.33" × 3.67") |
| Weight | 350 g (0.77 lb.) |
