Data Sheet

Code du produit:

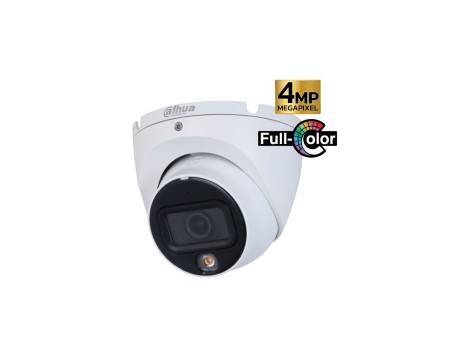

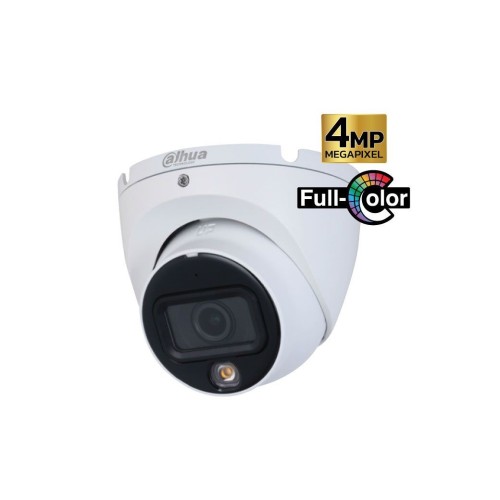

IPC-HDW1439T-A-LED-S4

Résumé:

4MP, 2560x1440, @30fps, H.265+, 120dB WDR, Motion Detection, IR, up to 30m (98ft), Built-in Mic, Audio, Alarm, IP67, 2.8,3.6 mm Lens, Fixed, DC12V

  • 4-MP 1/3" CMOS image sensor, low luminance, and high definitionimage.
  • Outputs max. 4 MP (2560 × 1440)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light, and the max. illumination distance is 30 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various
  • bandwidth and storage environments.
  • Illumination overexposure remover (face priority), rotation mode, WDR,
  • 3D NR, HLC, BLC, digital watermarking, applicable to various monitoringscenes.
  • Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict, and illegal access.
  • Built in MIC.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection
Technical Specification
Day/Night Color/B/W
Image Sensor 1/3" CMOS
Max. Resolution 2560 (H) × 1440 (V)
ROM 16 MB
RAM 128 MB
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Motion Detection OFF/ON (4 areas rectangular)
Min. Illumination 0.004 lux@F1.0
Region of Interest (RoI) Yes (4 areas)
S/N Ratio >56 dB
Smart Illumination Yes
Illumination Distance 30 m (98.43 ft) (warm light)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2560 × 1440 resolution and lower)
Illuminator On/Off Control Auto; Manual
Mirror Yes
Illuminator Number 1 (warm light)
Privacy Masking 4 areas
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; PCM
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 97°; V: 54°; D: 115°
3.6 mm: H: 80°; V: 45°; D: 94°
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 2560 × 1440@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability 2 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Browser IE
Chrome
Firefox
Management Software DSS; DMSS
Mobile Client iOS; Android
Cyber Security
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15 Subpart B
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2 W (12 VDC); 3.1 W (PoE)
Max. (WDR+H.265+ max. Illumination): 4 W (12 VDC); 5.4 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ?95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Material Metal
Product Dimensions 85.6 mm × ?94.0 mm (3.37"× ?3.70")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.46 kg (1.01 lb)
Accessories
Optional PFA13A-E Junction Box
PFB205W-E Wall Mount Bracket
PFA152-E Pole Mount Bracket
PFA106 Mount Adapter
PFB220C Junction Box
PFM321D 12 VDC 1 A Power Adapter
PFM900-E Integrated Mount Tester
