Data Sheet

Code du produit:

NC348G2-XD/LU/SL-B

Résumé:

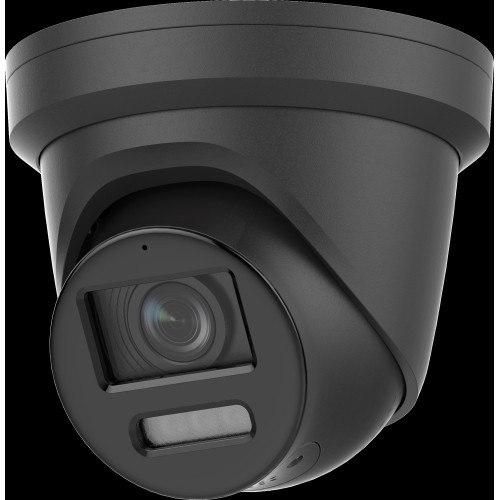

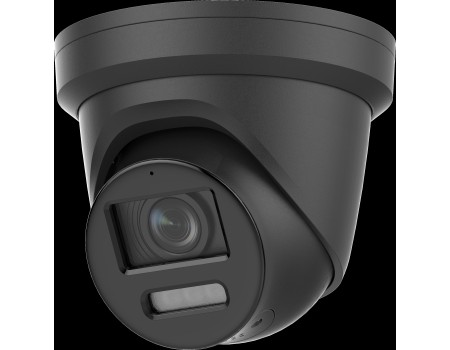

8MP Color247 White Light Fixed IP Turret Camera 8MP,Active Deterrence 3840x2160@25fps, H.265+, 130dB WDR, 0.0005 Lux@F1.0, Day & Night, Face Detection, Intrusion, Tripwire, Human/Vehicle, White Light up to 30m (98ft), Built-in Mic, MicroSD slot, 2.8mm Lens, Fixed, DC12V, PoE, IP67, Optional:DS-1273ZJ-140, DS-1280ZJ-PT6

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB
  • WDR technology
  • Focus on human and vehicle targets classification based
  • on deep learning
  • 24/7 colorful imaging
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Audio and alarm interface available
  • Water and dust resistant (IP67)

Camera

Image Sensor

1/1.2? Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color?0.0005 Lux @ (F1.0, AGC ON)?0 Lux with white light

Shutter Speed

1/3 s to 1/100,000 s

Day ? Night

24/7 Color imaging

Angle Adjustment

Pan: 0 to 360, tilt: 0 to 75, rotate: 0 to 360

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length ? FOV

2.8 mm, horizontal FOV 102, vertical FOV 52, diagonal FOV 124

4 mm, horizontal FOV 88, vertical FOV 47, diagonal FOV 104

Lens Mount

M mount

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 4.5 m to ?

4 mm: 7 m to ?

DORI

DORI

2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video





Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)



Video Compression

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps

(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,

IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user



Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE

and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central



Web Browser

Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

130 dB

SNR

>/= 52 dB

Privacy Mask

8 programmable polygon privacy masks, mask color or mosaic configurable

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance

adjustable by client software or web browser

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256

GB

Built-in Microphone

Yes

Built-in Speaker

1.5 W, 10 cm: 95 dB



Audio

1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface

type: non-equilibrium

1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ?,

interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Reset Key

Yes

Event



Basic Event

Motion detection (support alarm triggering by specified target types (human and

vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)



Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)),

scene change detection

Linkage

Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger

capture, send email

Deep Learning Function

Face Capture

Yes

General



Power

12 VDC ± 25%, 0.63 A, max. 8.5 W, 5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A

Material

Cover: metal, main body: metal

Dimension

138.3 mm × 120.1 mm (5.4" × 4.7")

Package Dimension

170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight

Approx. 900 g (2 lb.)

With Package Weight

Approx. 1190 g (2.6 lb.)

Storage Conditions

-30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)





Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter

Approval







EMC

FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN

50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)



Safety

UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)



Environment

CE-RoHS (2011/65/EU) WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

Protection

IP67: IEC 60529-2013
