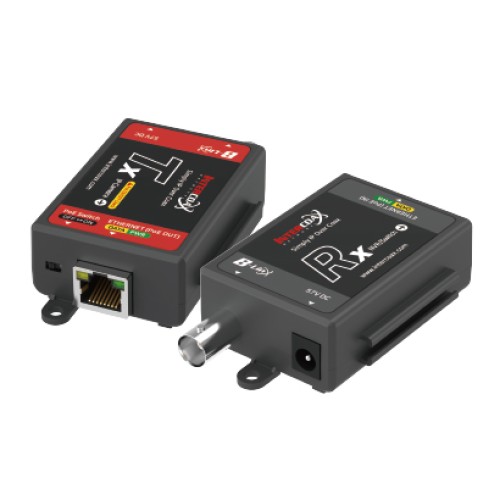

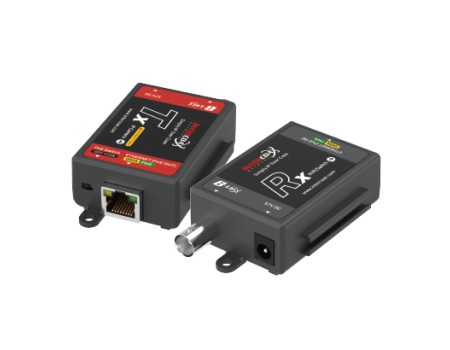

400M (1300ft) PoE and Ethernet over Coax Set

Model

ECP-01T

ECP-01R

Interface

Coax

1 x 75 Ohm BNC (Female) - Ethernet over Coax

Ethernet

1 x RJ45 - 10/100 Base-T

Transmission Rate

Max. 100Mbps between Intercoax devices

Transmission Distance

Data

up to 400 m when 100Mbps is used up to 1000 m when 10Mbps is used (5C-HFBT, RG-59 or better)

PoE (PoC)

Up to 400meter (RG59,RGG, 5C, 3C)

LED Indication

Ethernet

1 x Link (Yellow) / 1 x ACT (Green)

Power

Input

ECP-01R or DC48V~57V

PoE Switch/NVR (Max. 25W) or

DC48V~57V(Max. 70W)

PoE Output

IEEE802.3af (PoE), IEEE802.3at (PoE+),

Extra PoE up to G0W with 57V Power Adaptor

PoE Not Supported PoC Only

Mechanical

Dimension

83(L) x 51(W) x 24(H)mm

Weight

52g

Environment

Operating Temp

-20 ~ G0°C

Storage Temp

-30 ~ 80°C

Relative Humidity

10% ~ 90%

Compliance

Certification

FCC, CE, KC, RoHS

Surge Protection

IEC G1000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

Optional Accessories

57VDC / 1.2A External Power Supply
