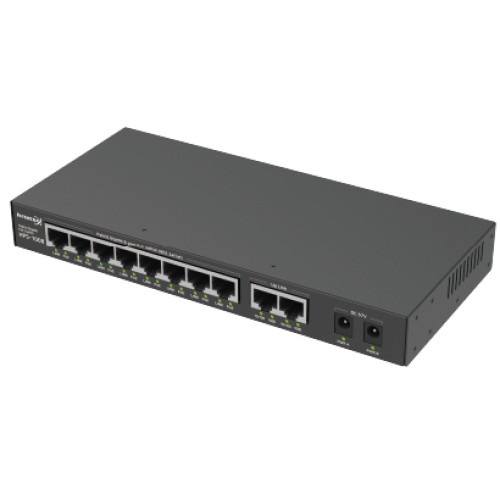

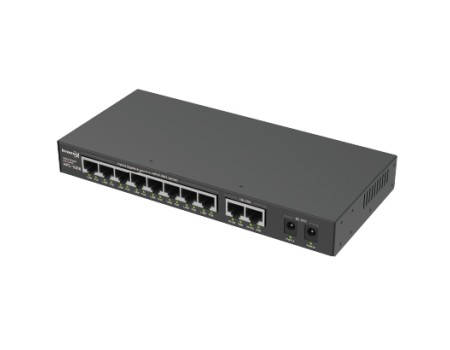

Hybrid PoE Switch Eco

Interface

Downlink

8 x RJ-45 – 10/100/1000 Base-T with Auto- detect MDIX

Uplink

2 x RJ-45 – 10/100/1000 Base-T with Auto- detect MDIX

Transmission Rate

Max. 1Gbps Full Duplex

Transmission distance

Ethernet / PoE

Up to 100m

Up to 200m with HPS-01 (2 Port Hybrid Switch)

LED Indication

Ethernet (Downlink)

8 x RJ45 Data Link (Green)

Ethernet (Uplink)

2 x RJ45 Data Link (Green/Orange)

PoE Output

8 x PoE Output (Orange)

PWR Input

2 x Power Input (Blue)

Power Input

2 x Power input [ DC-Jack ] DC48V-57V

Power Output

PoE

IEEE802.3af(PoE), IEEE802.3at (PoE+ / up to 25.5W)

Dimension

225(L) x 105(W) x 29(H) mm

Mechanical

Weight

700g

Operating Temp.

-10 ~ G0 °C

Storage Temp.

- 30 ~ 80 °C

Environment

Relative Humidity

10% ~ 90%

Compliance

Certification

FCC, CE, KC, RoHS

Surge Protection

IEC G1000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)
