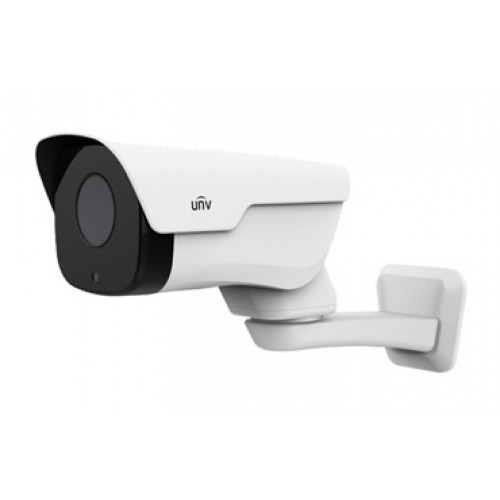

Caméra IR à objectif fixe 4MP
Caméra IR à objectif fixe 4MP
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

IPC744SR5-PF40(60)-32G

Résumé:

1/3" 4MP, progressive scan CMOS 2560×1440 resolution, 25fps 4mm/6mm optional Smart IR, up to 50m IR distance H.265, ONVIF DC12V, PoE. Wide voltage range of ±25% IP66

Connectez-vous pour le prix

PTZ

* Precision motor with accuracy deviation less than 0.1 degree.

* Pan range 250°, tilt range -50° to 50°

* Pan speed up to 15°/s, tilt speed up to 5°/s

Optics

* Smart IR, up to 50m (164 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* Day/night functionality

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* Customized OSD

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -35°C to +60°C (-31°F to +140°F)

* Wide voltage range of ±25%

* IP66


IPC744SR5-PF40-32G		IPC744SR5-PF60-32G
Camera
Sensor1/3", progressive scan ,4.0 megapixel, CMOS
Lens4.0mm@F1.86.0mm@F1.8
Angle of view(H)78.9°49.9°
ShutterAuto/Manual, 1/6s ~ 1/100000s
Minimum IlluminationColor: 0.03Lu× (F1.8, AGC ON)
0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>55dB
IR Range50m (164 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:4MP (2592×1520): Max. 20 fps?4MP (2560×1440): Max. 25 fps?3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way AudioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageBuilt-in 32GB eMMC
Network StorageANR
Network
ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
CompatibilityONVIF(Profile S), API
Structure
Pan Range250°
Pan Speed0.1°/s ~ 15°/s
Preset speed: 15°/s
Tilt Range-50° ~ 50°
Tilt Speed0.1°/s ~5°/s
Preset speed: 5°/s
Number of Presets400
PatrolUp to 16 patrols, up to 32 presets per patrol
Interface
Audio I/O3.5mm connector
Input: impedance 35 k?; amplitude 2 V [p-p]
Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O2 / 1
Network10M/100M adaptive Ethernet
General
Power12V DC±25%, PoE(IEEE802.3at)
Power consumption: Max. 17.23 W
Dimensions357 mm × 106 mm × 194mm (14.1"×4.2"×7.7")
Weight1.16kg (2.6 lb)
Working Environment–35°C to+60°C (-31°F to 140°F),Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP66
