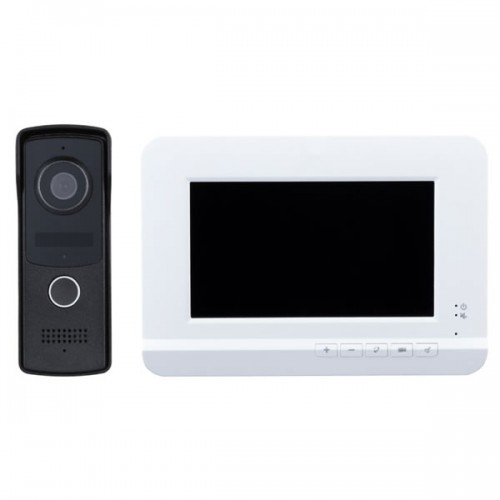

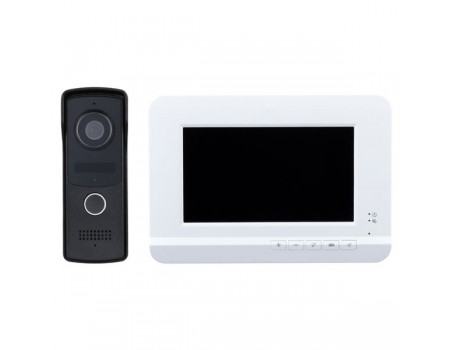

KIT de moniteur d'intérieur analogique à 4 fils Galaxy Hunter Series
KIT de moniteur d'intérieur analogique à 4 fils Galaxy Hunter Series
Data Sheet
Code du produit:
Code du produit:
GX-KTA01
Résumé:Écran 7 ", moniteur intérieur, fonction: déverrouillage, appel vidéo, réglage du volume et surveillance de la porte
- Dimension de l'écran: 7 pouces
- Fonction de surveillance intérieure: déverrouillage, appel vidéo, réglage du volume et surveillance de la porte
- Quantité de poste extérieur et de moniteur intérieur: 2 poste extérieur + 3 moniteur intérieur
- Scénario applicable: villa
VTO2010D | |
Button Type | Mechanical keyboard keys |
Camera | 2MP CMOS |
Field of View | Horizontal: 70° Vertical: 40° |
Focal Length | 3.3 mm |
IR | Support |
Audio In | 1 channel to the microphone, pickup distance 0.5m |
Audio Out | 1 channel to the speaker |
Indicator Light | 1 indicator light; Green: Power on |
Communication Method | Analog |
Unlock Mode | Local unlock |
Exit Button | 1 |
Appearance Color | Black |
Installation Mode | Surface |
Dimensions | 134.9 mm × 47.2 mm × 33.8 mm (5.31" × 1.86" × 1.33") |
Protection Grade | IK07, IP65(Apply silica gel to gaps between the device and the wall.Liquid sodium silicate is recommended. For details, see the quick start guide.) |
Operating Temperature | -30° C to +50° C (-22°F to +122°F) |
Operating Humidity | 10%RH –95%RH |
Power Consumption | ?1W (standby mode) ?3W (operating) |
Net Weight | 0.19 kg (0.42 lb) |
VTH2020DW | |
Button Type | Mechanical keyboard keys |
Screed Type | Non-touch screen |
Display | 7 inch TFT display |
Resolution | 800 (H) × 480 (V) |
Status indicator Light | 2 indicator lights Power: Indicator light green-Power on Volume: Indicator light off-Mute |
Communication Methods | Analog |
Housing Material | PC+ABS |
Appearance Color | White |
Power Supply Mode | 12V DC 2A |
Power Source | Optional |
Installation Mode | Surface |
Dimensions | 220.5 mm × 153.5 mm × 26.8 mm (8.68" × 6.04" × 1.06") |
Operating Temperature | -10° C to +55° C (+14°F to +131°F) |
Operating Humidity | 10%RH–95%RH |
Power Consumption | ?2W (standby mode) ?5W (operating) |
Net weight | 0.39 kg (0.86 lb) |
Type | Nom du fichier | Heure mise à jour | Action | ||||||||
G?®n?®ral
Fichiers multiples
|
