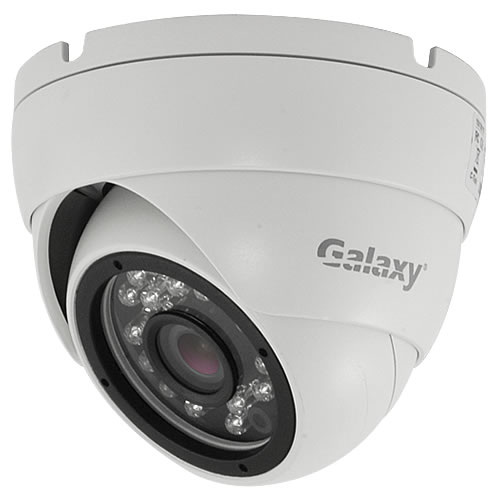

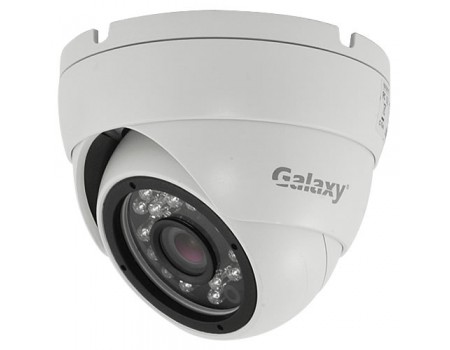

Hd1080 Sony 3.6mm Ir15m Icr Wdr 3dnr 12v
Data Sheet
Product Code:
Product Code:
TVI44DW
Summary:1920x1080, Day&Night(ICR), DWDR, IR up to 15m (49ft), OSD/UTC, IP65, 3.6mm Fixed Lens, DC12V
- 1920x1080, Day&Night(ICR)
- DWDR, IR up to 15m (49ft)
- OSD/UTC, IP65
- 3.6mm Fixed Lens, DC12V
| IP Rating | IP65 |
| Type | Removable IR Cut Fitter |
| Signal System | NTSC/PAL |
| Pick Up Device | 1/2.7" 2/0 Mega Pixels SONY |
| Picture Elements | 1920(H) X 1080(V) |
| Min Illumination | 0Lux with IR LED 24 pieces |
| S/N Ratio | >=48dB |
| Lens | 3/6mm Board Lens |
| 3D/2D | ON |
| IR SMART | ON |
| White Balance | ATW |
| Back Light Compensation | OFF |
| D-WDR | ON/OFF |
| Video Out-put | HD-TVI |
| Power Supply | DC12B +- 10% |
| Current Consumption | 350Ma(MAX) |
| IR Effect Distance | 15m?49.2ft) (Outdoor) |
| Dimension | 94x80mm ?3.73.15? |
| Weight | 330g(11.64oz) |
| Storage Temperature | -30 - +60 c (-22 - + 140f) |
| Operating Temperature | -30 - +40 c (-22 - + 104f) |
